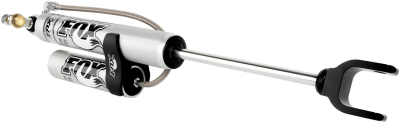

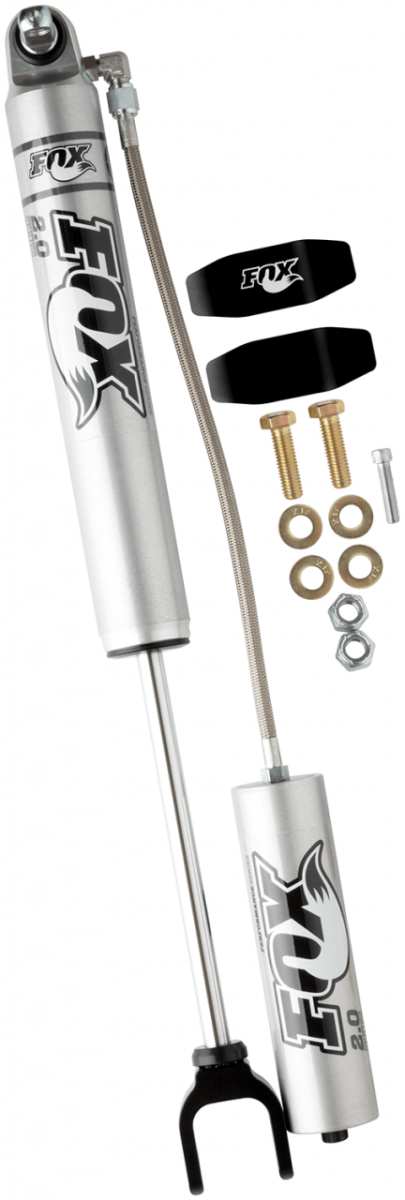

2011-2019 Duramax Fox 2.0 Performance Series RR Front Shock for  4" to 6" of Front Lift

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

Body Plating - Clear-anodized for a durable finish

Reservoir - 2.0" Smooth bore 6061-T6 Aluminum is hard anodized

Components - Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft - 5/8" hard chrome plated heat-treated alloy steel

Piston - Race-developed high-flow piston design

Valving - Application specific valving to maximize performance

Seals - Redundant sealing pack system main seal, wiper seal, scraper seal

Bushings - Quiet nitrile rubber allows for increased suspension articulation

Extended - 22.890 inches

Compressed - 14.780 inches

Travel - 8.120 inches

Top Mount - Bar Pin

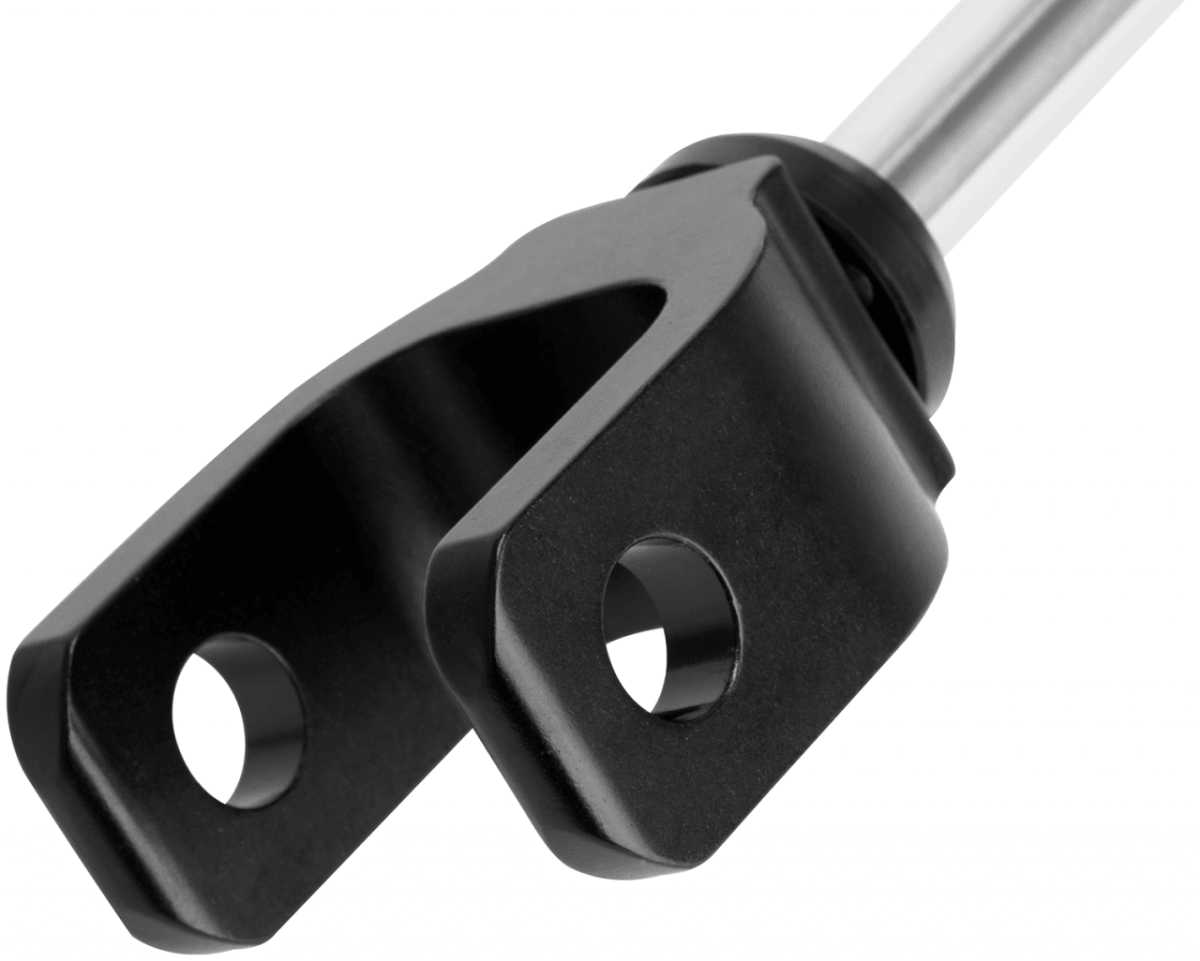

Bottom Mount - Clevis
