2020-2024 L5P Duramax WCFab X Cognito - 3" Premier Leveling Kit

Additional Images
WCF-110-P0929
-Yields 3-inches of front lift
-Cognito Ball Joint SM Series Upper Control Arm Kit
-Cognito Pitman and Idler Arm Support Kit
-Cognito Torsion Bar Adjuster Key Kit
-Fox 2.0 Performance Series Remote Reservoir Shocks
-.5-inch Front Shock Extender Kit
-Maintains adequate droop travel to optimize ride quality
-PISK improves drivability, fuel economy, and tire wear
-Allows for up to a 35x12.5 Tire on a 9-inch Wide Wheel with Zero Offset
-Made in the USA
Availability: 10-15 Business Day Lead Time
Select Options & Add to Cart
Pricing: $2429.68

As low as $220/mo with . Check your purchasing power

*Select Custom Control Arm Powder Coat Reset

Please select your Color. Samples can be viewed on the "Powder Coat Colors" page of the main menu.

*Select Emblem (Logo) Finish (PCUCTAG) Reset

Select your Emblem finish from the options below.

*Select WCFab Traction Bar Option Reset

WCFab Traction Bars?

*Select WCFab Traction Bar Powder Coat Reset

*Select Tag (Logo) Finish (PCUCTAG) Reset

Select your Tag (WCFab Emblem) finish from the options below.

Your Selected Options

Emblem (Logo) Finish (PCUCTAG):
No thanks, I would like the standard Brushed tag finish. (Standard Finish)
The emblem comes standard in raw brushed finish.
Tag (Logo) Finish (PCUCTAG):
No thanks, I would like the standard Brushed tag finish. (Standard Finish)
The WCFab emblem on our product comes standard in raw brushed finish (unless you choose Fluorescent Green or Fluorescent Orange). The other options in this list are custom order and carry additional cost and lead time.

Your Total Price

$2429.68
Qty:

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Description

Cognito 3-Inch Premier Leveling Kit with Fox PSRR 2.0 Shocks for 20-24 Silverado/Sierra 2500/3500 2WD/4WD

We have bundled everything you need in a leveling kit for your Silverado/Sierra 2500/3500 2WD/4WD with high quality Cognito components and Fox shocks.

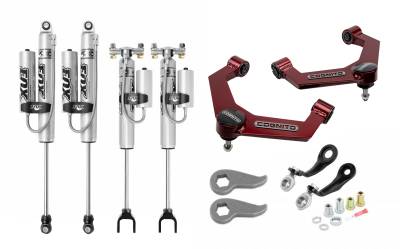

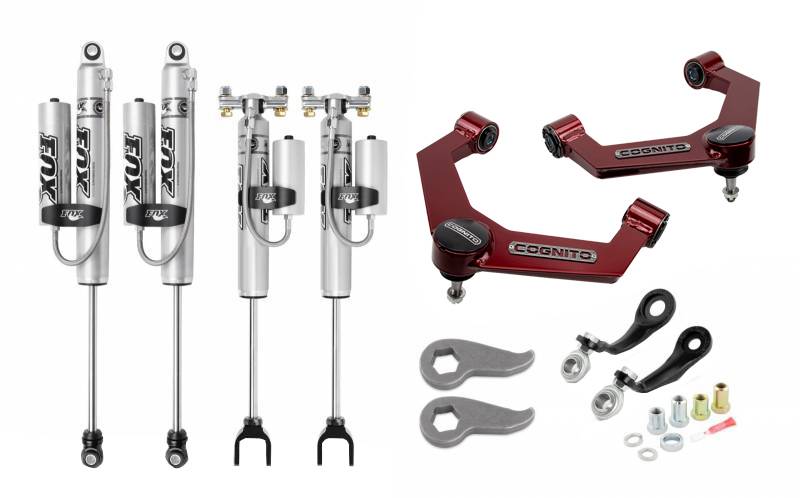

There is no guesswork. Cognito components are engineered, manufactured and assembled in the USA. This kit includes the Cognito Ball Joint SM Series Upper Control Arm Kit, Torsion Bar Adjuster Keys, Cognito Pitman and Idler Arm Support Kit, front and rear Fox Performance Series Remote Reservoir shocks and front shock spacers to maximize droop travel.

The Cognito Ball Joint SM Series Upper Control Arms feature boxed sheet metal arms that are CNC robot welded and finished with a durable semi-gloss black powder coating. Alloy series ball joints are included as well as new crush sleeves and polyurethane bushings.

The Cognito Ball Joint SM Series Upper Control Arms adds performance to the Chevy and GMC truck by correcting the ball joint angle for lifted and leveled applications, increasing droop travel, and increasing caster slightly for better highway speed drivability.

The Cognito PISK (Pitman and Idler Arm Support Kit) replaces the problem components that plague factory and aftermarket steering systems on several models and years of GM trucks and SUVs. These improvements are accomplished through application of Cognito's innovative, patented design, by providing additional support to the vehicle's pitman and idler arms, which eliminate the forward and rearward movement of the center-link.

Fox 2.0 Performance Series Remote Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look.

The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series Reservoir shock a predictable ride quality capable of handling the roughest road conditions.

Each Kit Features:

-Yields 3-inches of front lift
-Cognito Ball Joint SM Series Upper Control Arm Kit
-Cognito Pitman and Idler Arm Support Kit
-Cognito Torsion Bar Adjuster Key Kit
-Fox 2.0 Performance Series Remote Reservoir Shocks
-.5-inch Front Shock Extender Kit
-Maintains adequate droop travel to optimize ride quality
-PISK improves drivability, fuel economy, and tire wear
-Allows for up to a 35x12.5 Tire on a 9-inch Wide Wheel with Zero Offset
-Made in the USA

If you require assistance selecting the correct parts for your application, please call us at 630-277-8239 to speak with one of our specialists about your application.
