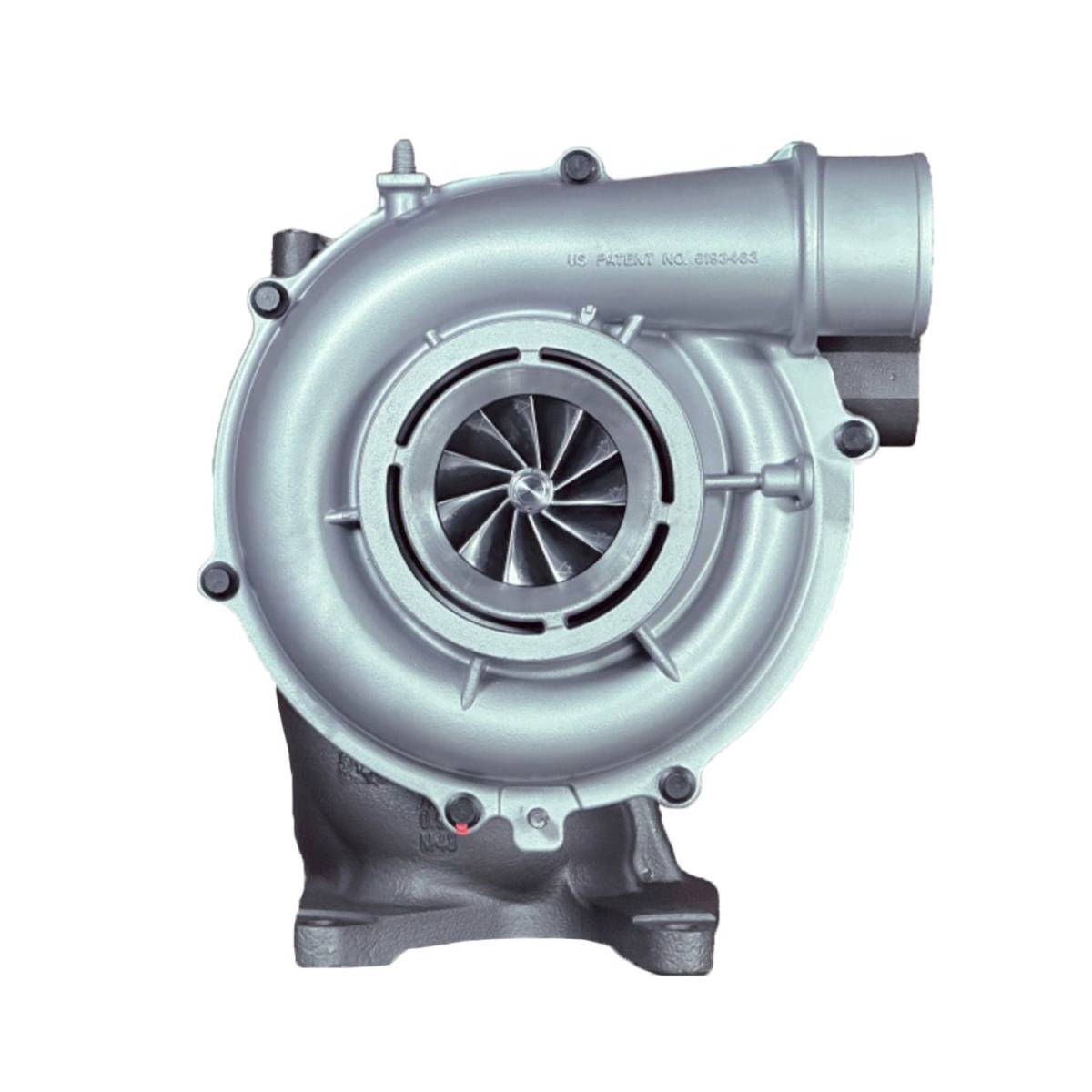

2004.5-2010 LLY/LBZ/LMM Duramax VVT Stealth 64mm Hybrid Turbo

The VVT Stealth Mach 1 Hybrid is a specialized stock appearing, direct replacement for your 2004.5, 2005, 2006, 2007, 2008, 2009, and 2010 LLY, LBZ, or LMM Duramax. Specifically designed for Sled Pulling and Compound Turbo applications due to its unique configuration. This turbo features all the guts of Duramaxtuner's most powerful (67mm) Mach 2 turbo, but with the slight teak of utilizing their smaller 63mm Air grabber compressor wheel. This was done in order to create the most optimized primary compound turbo offering on the market. This turbo is also a great option for those limited to a 64mm compressor wheel due to competition regulations and who want to make the most out of their top-end performance.

While upgrades found in the Mach 2 such as HFV (High Flow Vane technology) & the extra-large turbine wheel are not ideal for low end power or spool-up, the improvement in flow that they offer can directly result in an increase in top-end performance. This increase in flow is also ideal for passing as much of the additional exhaust gas energy as possible on to the turbine of a secondary turbo in a compound setup. Further helping to increase compound turbo setup efficiency and performance. Increased exhaust side flow from upgrades such as Calibrated Power's HFV, upgraded turbine wheel, and ported exhaust housing can significantly help in managing EGTs while under load.

The unique advantage of this turbo's design cannot be understated. Aided by insight from the tuning experts at DuramaxTuner’s experience with the 6.6L Duramax platform and how it responds to tuning adjustments, changes in airflow, and increased power was a crucial component in building you the perfect primary compound turbo.

 FEATURES

 63mm Air Grabber Compressor Wheel

• Air flow to support 650rwhp (dynojet)
• Supports 600rwhp with emissions in-tact and tuning
• 11-blade design provides a wide efficiency range
• Weight and size optimized for top-end efficiency
• Featuring the latest advancements in compressor wheel technology
• Air Grabber Technology for even more airflow
• Made out of aerospace-grade billet aluminum

Beast Wheel™ Turbine Wheel

• 10% larger wheel for increased airflow and lower EGTs
• Custom 10-blade design provides improved flow characteristics over stock
• Signature Stealth turbo whistle
• Made out of high-quality Inconel 718
• Better durability than stock

HFV Technology (High Flow Vanes)

• Designed taller for less turbine nozzle restriction
• Designed wider for improved exhaust-flow dynamics
• Helps to maintain lower EGT's under high load
• Machined out of high-quality billet 310 stainless steel

Exhaust Housing

• Machine-ported down pipe opening for improved exhaust flow in
• Machine-ported up-pipe inlets for improved exhaust flow out
• Helps to maintain lower EGT's under high load

Other Upgrades

• 360˚ Thrust bearing
• Heavy-duty journal bearings

Stealth Turbo Benefits

• Absolutely no core charges
• Brand new parts and accessories
• 1-year warranty on all of our turbos
• Extended warranties available
• Live on-site customer support team to help

This Turbo is Designed for you...

• Daily drive your truck
• Reliability and Performance are your top priorities
• Tow with your truck
• Prefer to simply swap your old turbo out for a new one
• Want more power when you need it, but still have excellent street manners.

Replaces the following OEM Part Numbers: 736554-5014, 736554-0011, 736554-5011, 736554-9011, 736554-0001, 736554-5001, 736554-9001, 736554-0002, 736554-5002, 736554-9002, 736554-0003, 736554-5003, 736554-9007, 736554-9008, 736554-9014, 736554-9003, 736554-0004, 736554-5004, 736554-9004, 736554-0005, 736554-5005, 736554-9005, 736554-0006, 736554-5006, 736554-9006, 736554-0007, 736554-0008, 736554-0014, 790032-9003, 7900329003, 19329915, 97387896, 98011735, 98021617, 98065854, 12639460, 736554-5015, 736554-9015, 759622-5005, 759622-9005, 763333-5005, 763333-9005, 790032-5004, 790032-9004, 848212-5001, 8482125001, 848212-900, 8482129001, 98011735, 19329916, 98021617, 98065854, 8980033661, 8980033662, 8980117351, 98003366, 759622-5006, 759622-9006, 759622-5, 759622-0002, 759622-5002, 759622-9002, 759622-5005, 759622-0005, 759622-9005, R759622-5005, R759622-9005, 848212-5001, 8482125001
