2003-2012 5.9 & 6.7 Cummins Edge Evolution CTS3 Tuner
85400-300
- Recommended for trucks with stock or basic bolt on parts
- Comprehensive, state-of-the-art, multi-gauge/tuner touch-screen display
- 3rd Generation design is faster and more capable than ever
- Power levels designed for daily driving, towing, performance and extreme use
- Simple installation just plug into OBDII port. No wiring required
- Monitor key vehicle parameters like trans temp, boost, RPM and dozens more
- Full color, 5 capacitive touch screen with auto-dimming
- Crystal clear data at your fingertips
- Highly customizable gauges and backgrounds
- Boot up directly to gauge screen upon key cycle
- Swipe capability allows easy switching between screens as needed for towing, performance, economy, etc
- Built-in performance meter measures 0-60, mile times and more
- Advanced integrated data logger with export capability
- Ability to add vehicle licenses to tune multiple vehicles with one product
- Clear and Read DTC codes
- Wi-Fi updateable
- Speedometer Correction for Bigger Tires
- Speed Limiter Adjustment
- DOES NOT DELETE EMISSIONS EQUIPMENT OR WORK WITH DELETED TRUCKS
- Not Recommended for custom builds with Larger Aftermarket Turbo and Fuel Setups
- CARB EO # D-802-13
- Comprehensive, state-of-the-art, multi-gauge/tuner touch-screen display
- 3rd Generation design is faster and more capable than ever
- Power levels designed for daily driving, towing, performance and extreme use
- Simple installation just plug into OBDII port. No wiring required
- Monitor key vehicle parameters like trans temp, boost, RPM and dozens more
- Full color, 5 capacitive touch screen with auto-dimming
- Crystal clear data at your fingertips
- Highly customizable gauges and backgrounds
- Boot up directly to gauge screen upon key cycle
- Swipe capability allows easy switching between screens as needed for towing, performance, economy, etc
- Built-in performance meter measures 0-60, mile times and more
- Advanced integrated data logger with export capability
- Ability to add vehicle licenses to tune multiple vehicles with one product
- Clear and Read DTC codes
- Wi-Fi updateable
- Speedometer Correction for Bigger Tires
- Speed Limiter Adjustment
- DOES NOT DELETE EMISSIONS EQUIPMENT OR WORK WITH DELETED TRUCKS
- Not Recommended for custom builds with Larger Aftermarket Turbo and Fuel Setups
- CARB EO # D-802-13
Shipping: 50 State Compliant CARB E.O. D-802-13
Was:
$689.95
Sale:
$620.95
Save:
10%
Save:
$69.00
Description

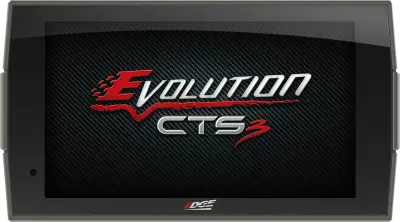

The Evolution CTS3 Tuner is an all-new, full-Color Touch Screen CTS3. The CTS3 includes all of the great features, benefits, and extended coverage from the prior generation CTS2, adding a sleek, new exterior and cutting-edge screen. Featuring a revamped, slim case design and a 5 full-color capacitive edge-to-edge display with true swipe screen technology. Not only is the display sharper, but the higher resolution screen delivers a tremendous pixel ratio and top-notch graphics. New screen layouts, faster processing speeds, and WiFi update capability are just a few things that set the Evolution CTS3 apart from all other competitors.
The Evolution CTS3 reprograms your vehicle's stock computer through the OBDII port of the vehicle. The Evolution is used to save the stock files from the vehicle's computer and then upload the Edge calibrations into the vehicle's computer. This product comes with multiple power levels custom tuned by a team of engineers and can be installed in minutes without ever popping the hood. The Evolution greatly increases horsepower and torque and not only does it re-tune your vehicle, but it also stays mounted in the cab of the vehicle and features real-time, monitoring of vital engine and vehicle data for a complete gauge package.
If you're looking for a product to improve throttle response, that extra power when towing, race down the track, increase fuel economy, or just improve the overall driveability of your truck then the Evolution is a great option. Not only do you get these increased performance features but you get a monitor that offers a clean simple solution for gauges like EGT (exhaust gas temperature), Boost readings, transmission temp, load percent, percentage of fuel left, and more with the expandability to even add more with the EAS (expandable accessory system).
03-04 5.9L Cummins:
- Power Level 1 - +25 HP / 100 ft-lbs
- Power Level 2 - +70 HP / 165 ft-lbs
- Power Level 3 - +95 HP / 220 ft-lbs
- Power Level 4 - +120 HP / 340 ft-lbs
04.5-07 5.9L Cummins:
- Power Level 1 - +55 HP / 130 ft-lbs
- Power Level 2 - +80 HP / 185 ft-lbs
- Power Level 3 - +115 HP / 275 ft-lbs
- Power Level 4 - +175 HP / 430 ft-lbs
07.5-09 6.7L Cummins:
- Power Level 1 - +35 HP / 130 ft-lbs
- Power Level 2 - +60 HP / 180 ft-lbs
- Power Level 3 - +85 HP / 235 ft-lbs
- Power Level 4 - +125 HP / 340 ft-lbs
10-12 6.7L Cummins:
- Power Level 1 - +25 HP / 75 ft-lbs
- Power Level 2 - +45 HP / 145 ft-lbs
- Power Level 3 - +70 HP / 190 ft-lbs
- Power Level 4 - +95 HP / 270 ft-lbs
Details
- 85400-300
- 85400-300
- 810065210036
- Edge Products
- New
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W7.0000” x H4.0000” x L10.0000”
- This item ships in its own box.
- 50 State Compliant CARB E.O. D-802-13
