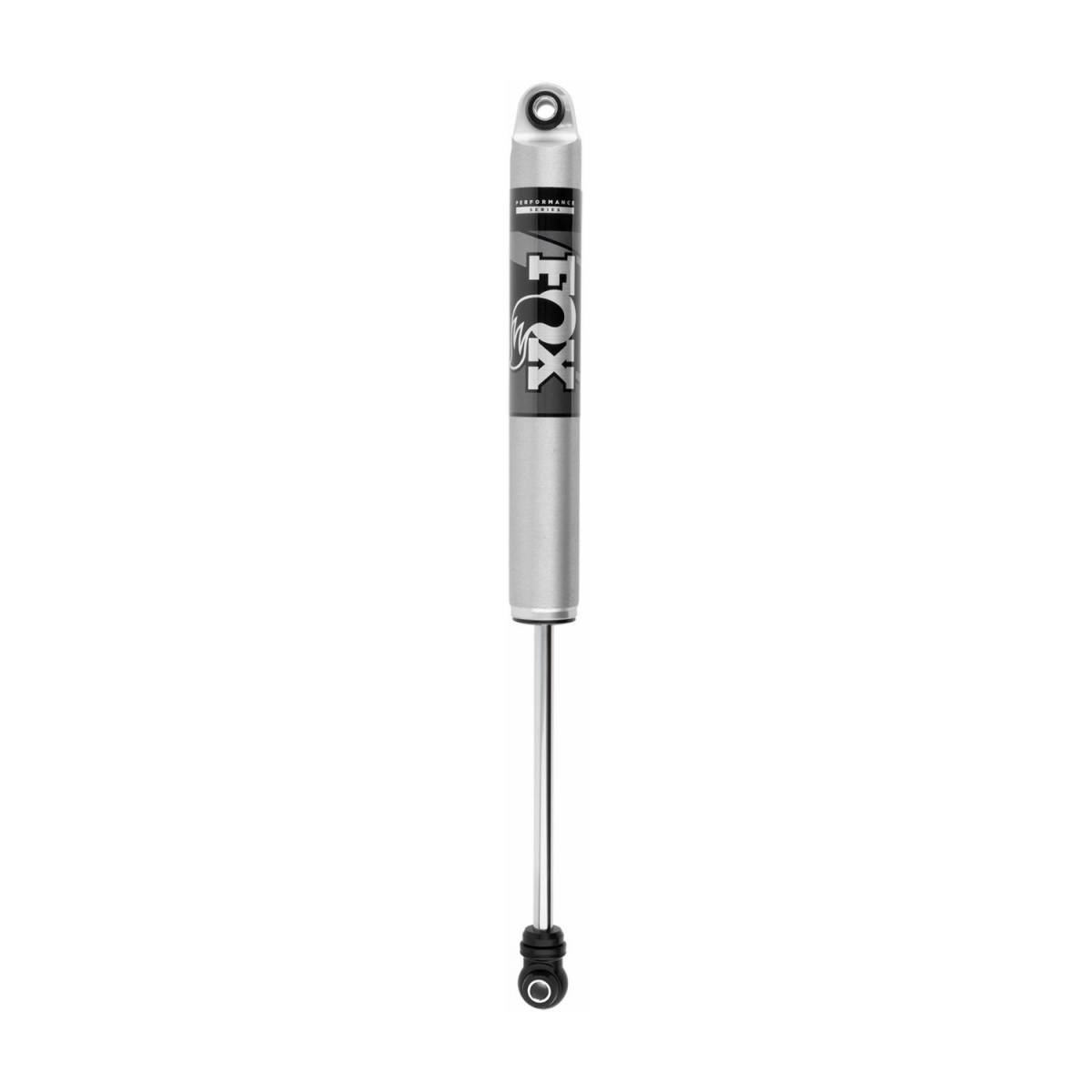

2017-2023 Power Stroke Fox 2.0 Performance Series IFP Rear Shock for 1.5-3.5" Rear Lift

Fox Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your 2017-2023 Power Stroke Ford F-250 / F-350 (and 2017-2019 Ford F-450 and F-550) Truck. They use race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find Fox's race-proven performance valving technology. The Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

Body Plating - Clear-anodized for a durable finish

Reservoir - Internal IFP mono-tube reservoir design

Components - Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft - 5/8" hard chrome plated heat-treated alloy steel

Piston - Race-developed high-flow piston design

Valving - Application specific valving to maximize performance

Seals - Redundant sealing pack system main seal, wiper seal, scraper seal

Bushings - Quiet nitrile rubber allows for increased suspension articulation

Extended - 32.820 inches

Compressed - 20.200 inches

Travel - 12.620 inches

Top Mount - Eyelet

Bottom Mount - Eyelet
