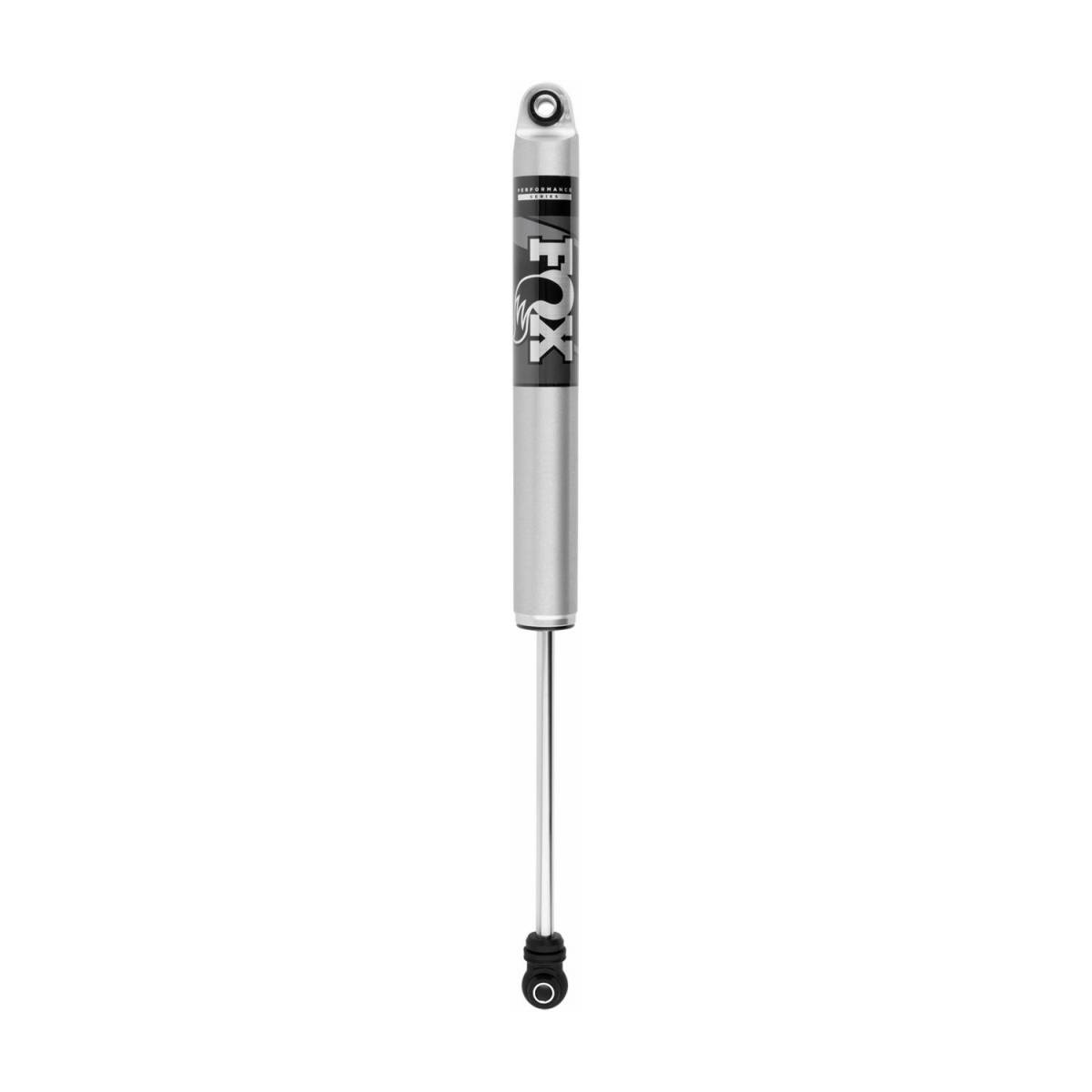

1994-2023 Cummins (3500) Fox 2.0 Performance Series IFP Rear Shock for 6" Rear Lift

Fox Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your 1994-2023 Cummins Ram 3500 (and 1994-2013 Ram 2500) Truck. They use race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find Fox's race-proven performance valving technology. The Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

Body Plating - Clear-anodized for a durable finish

Reservoir - Internal IFP mono-tube reservoir design

Components - Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft - 5/8" hard chrome plated heat-treated alloy steel

Piston - Race-developed high-flow piston design

Valving - Application specific valving to maximize performance

Seals - Redundant sealing pack system main seal, wiper seal, scraper seal

Bushings - Quiet nitrile rubber allows for increased suspension articulation

Extended - 31.820 inches

Compressed - 19.700 inches

Travel - 12.120 inches

Top Mount - Eyelet

Bottom Mount - Eyelet
