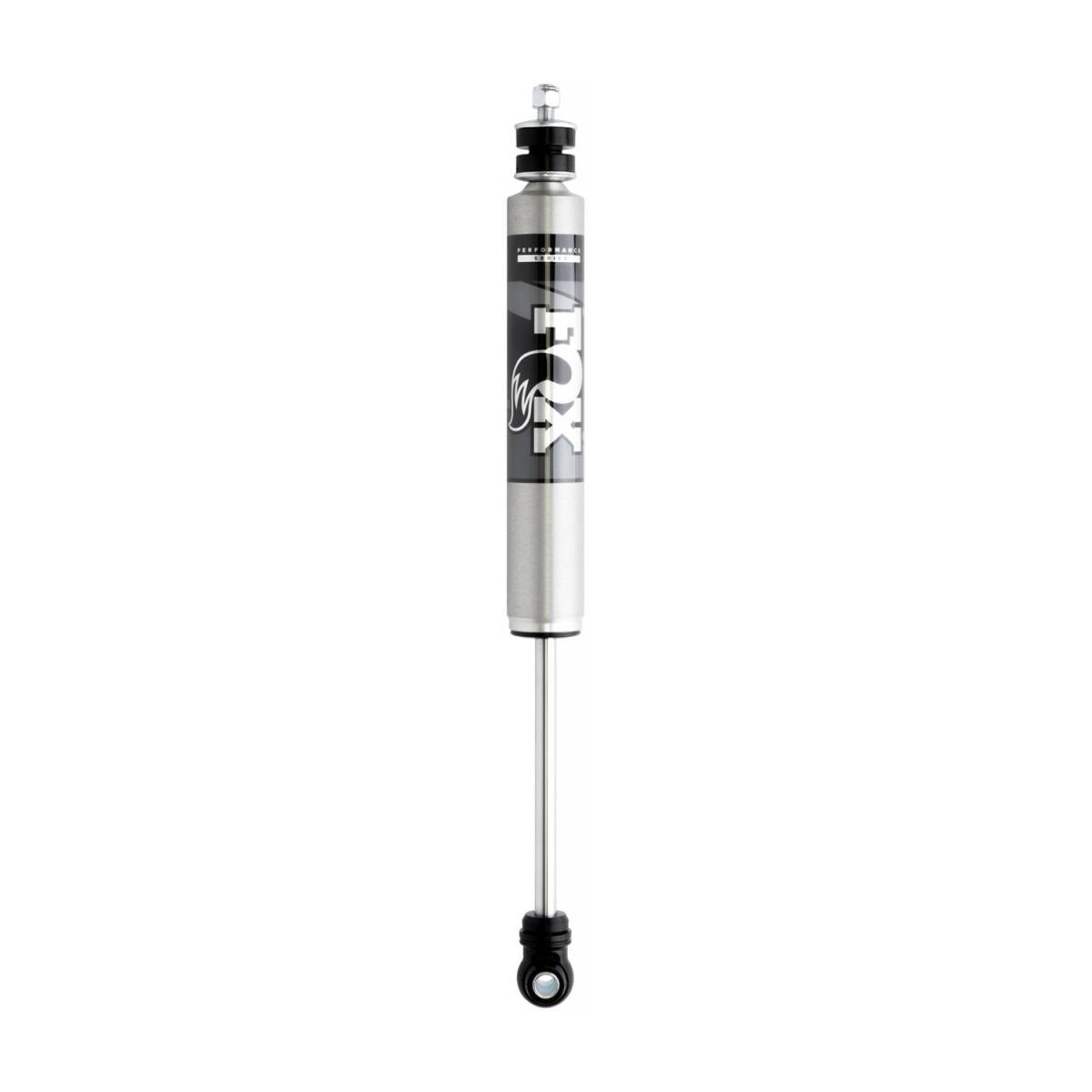

2001-2010 Duramax Fox 2.0 Performance Series IFP Front Shock for  4" to 6" of Front Lift

Fox Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Lifted 2001-2010 GM 2500 / 3500 HD Truck. They use race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find race-proven performance valving technology. Fox's Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time

Body Plating - Clear-anodized for a durable finish

Reservoir - Internal IFP mono-tube reservoir design

Components - Black-anodized, CNC-machined 6061-T6 billet aluminum

Shaft - 5/8" hard chrome plated heat-treated alloy steel

Piston - Race-developed high-flow piston design

Valving - Application specific valving to maximize performance

Seals - Redundant sealing pack system main seal, wiper seal, scraper seal

Bushings - Quiet nitrile rubber allows for increased suspension articulation

Extended - 21.780 inches

Compressed - 14.150 inches

Travel - 7.630 inches

Top Mount - Stem Top

Bottom Mount - Eyelet
