2007.5-2010 LMM Duramax High Flow 3" Y-Bridge Kit

Additional Images

Shipping: This Product cannot ship to the state of California

SKU: WCF100164

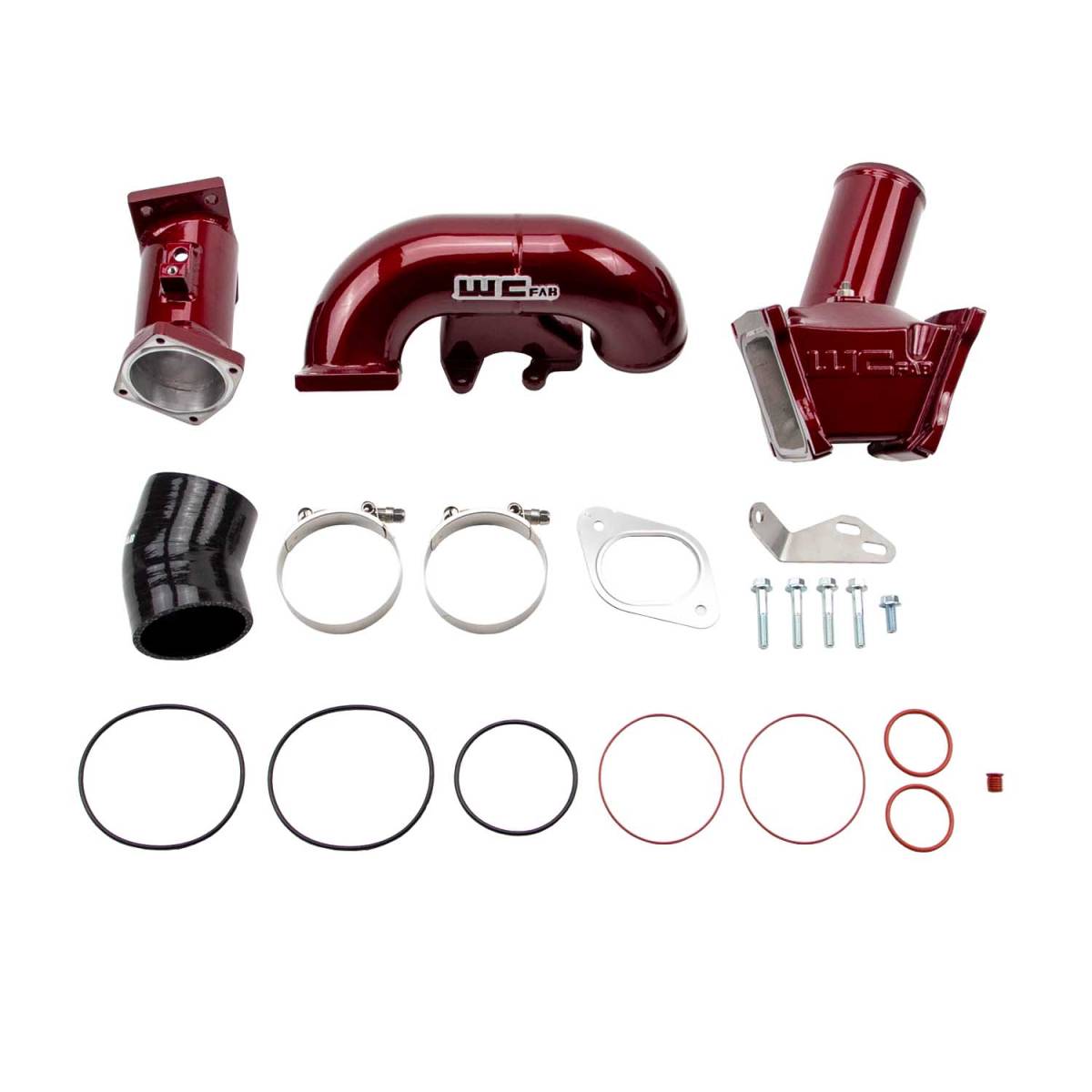

-36% Improvement in Air Flow Over Stock
-Eliminates restrictions and known failure points in OEM design

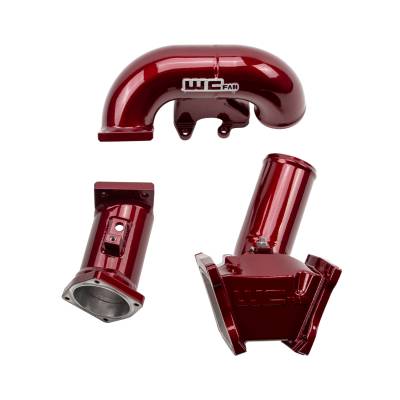

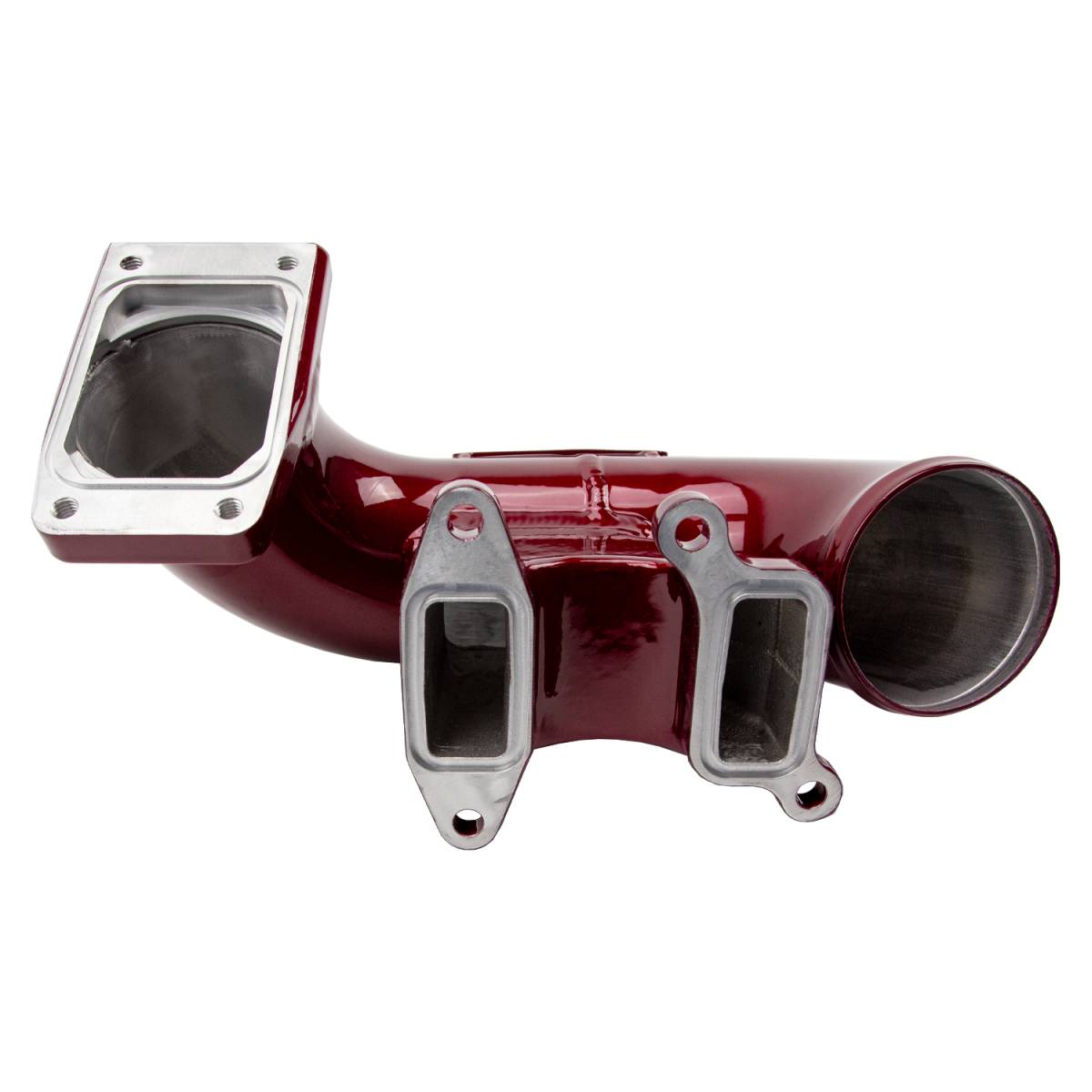

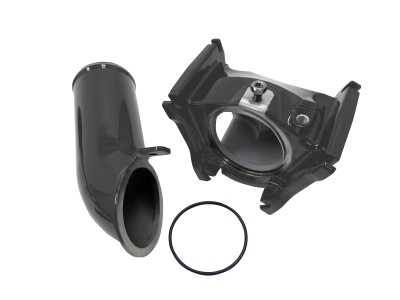

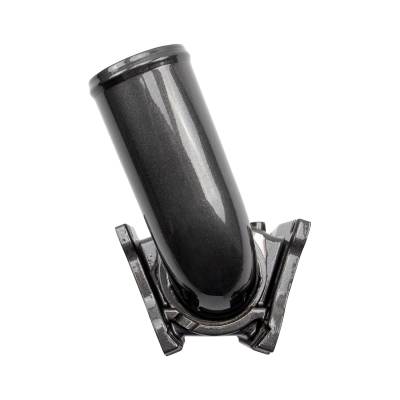

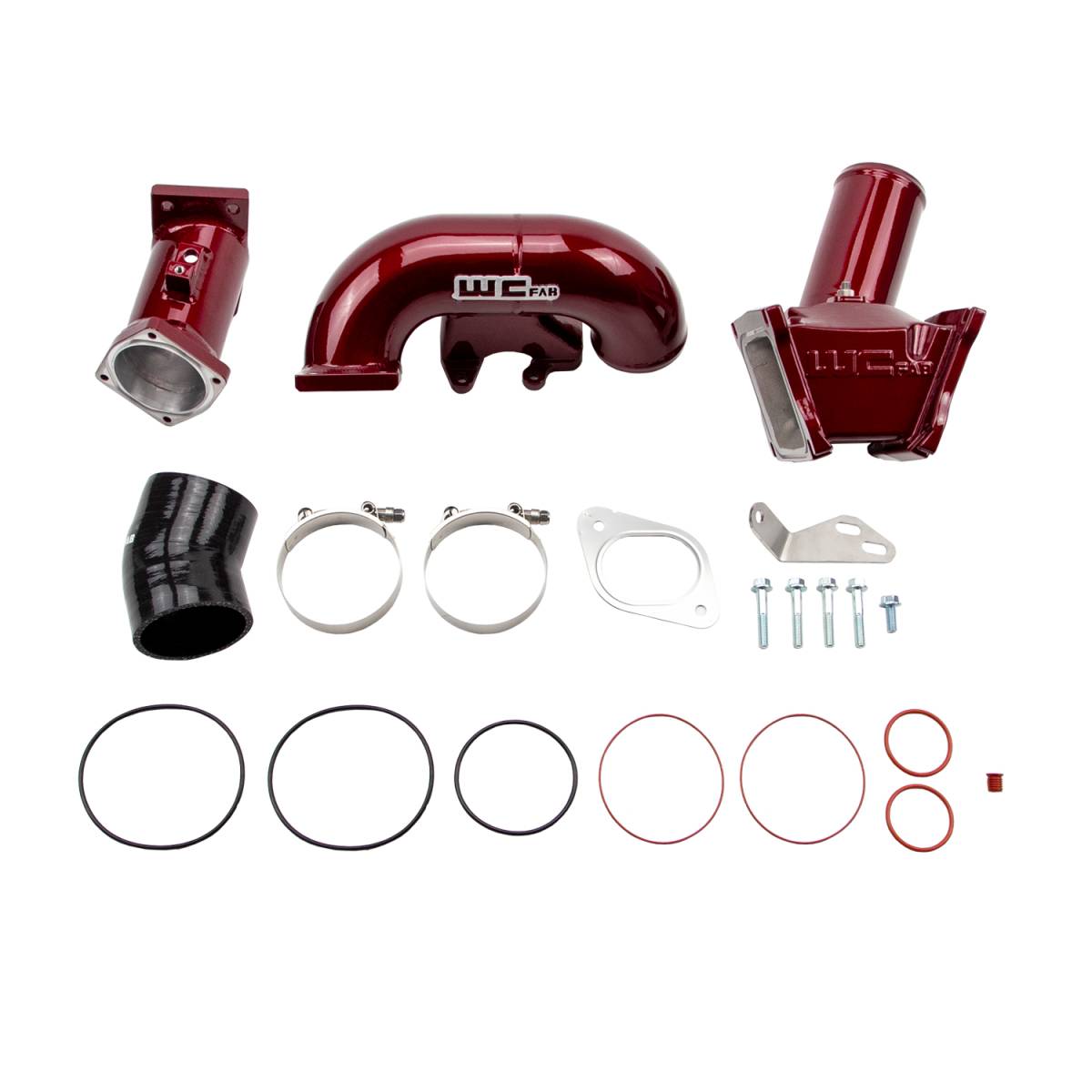

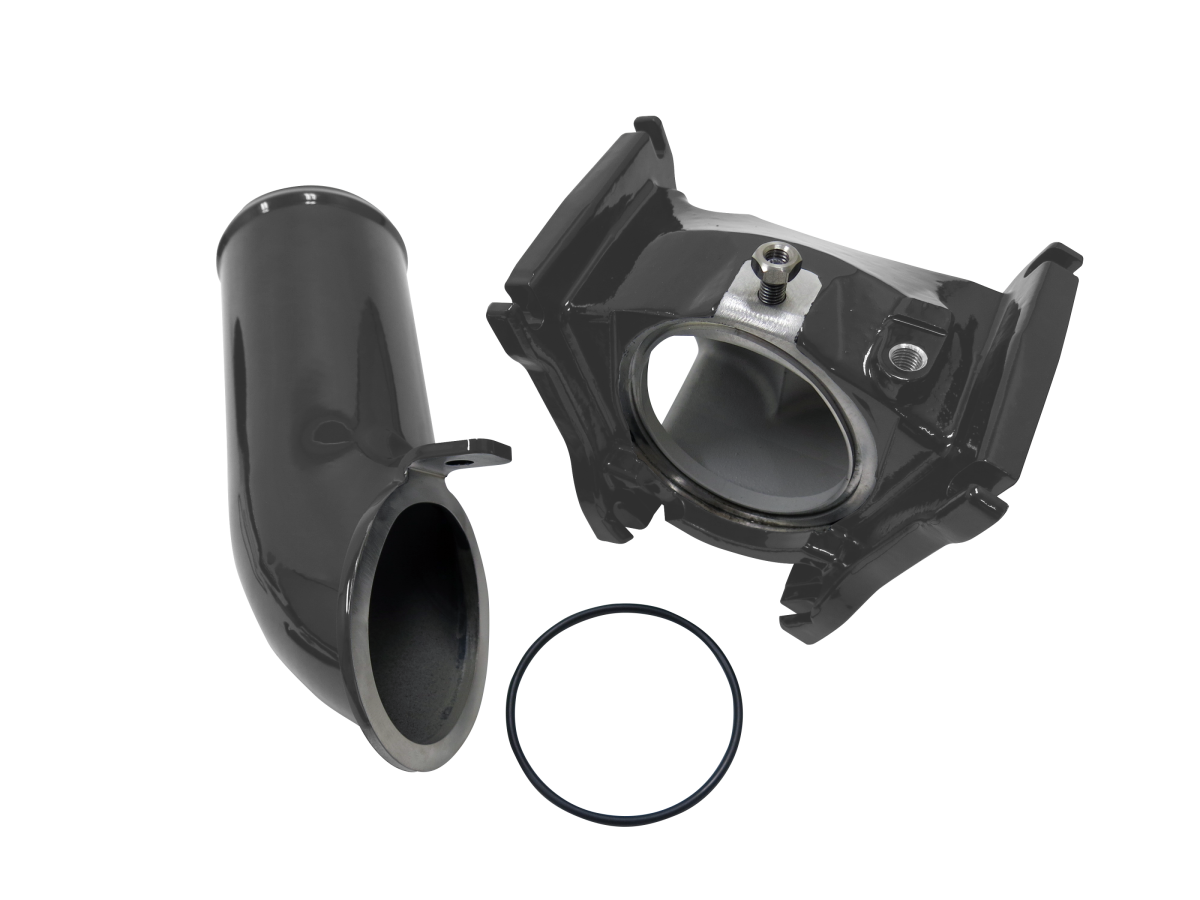

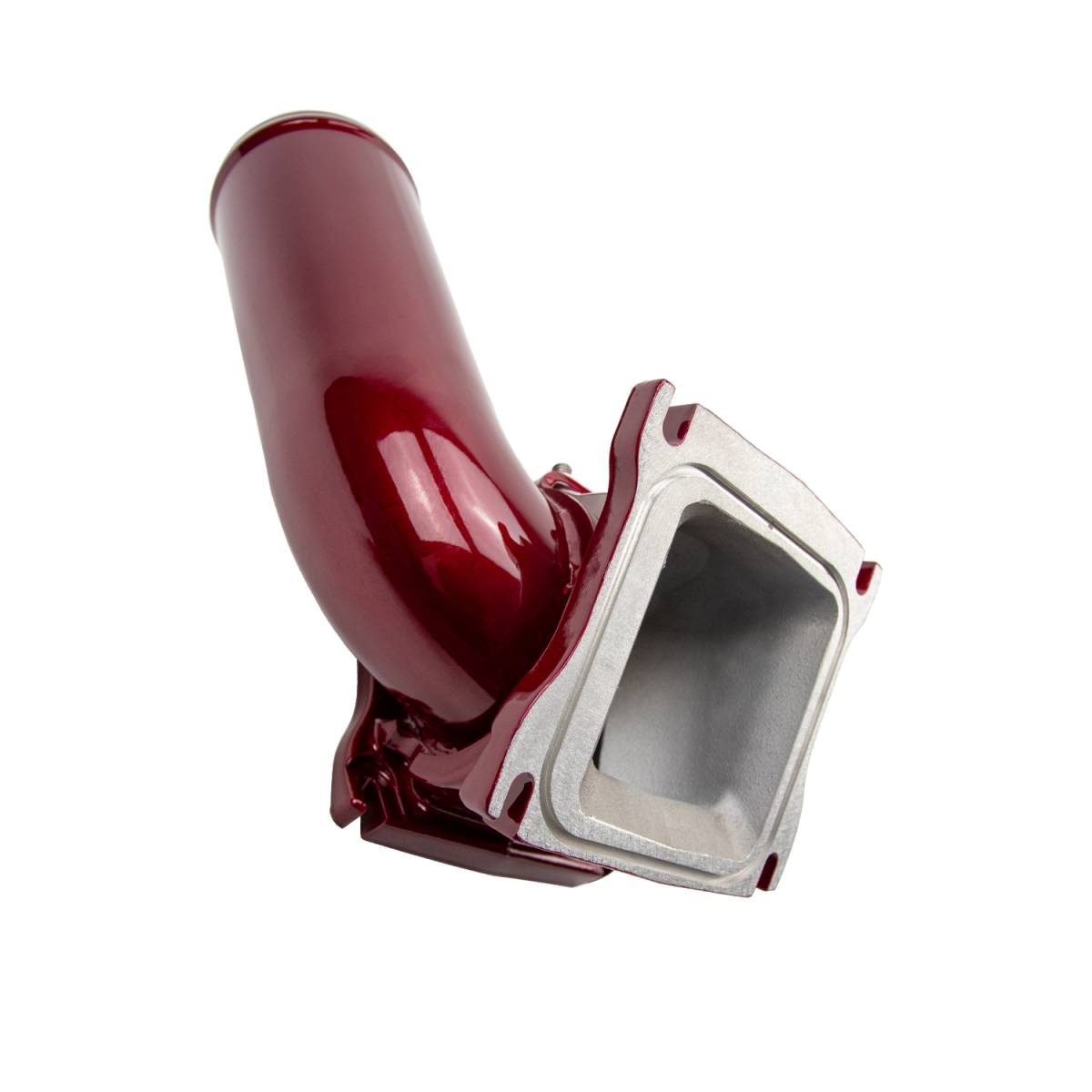

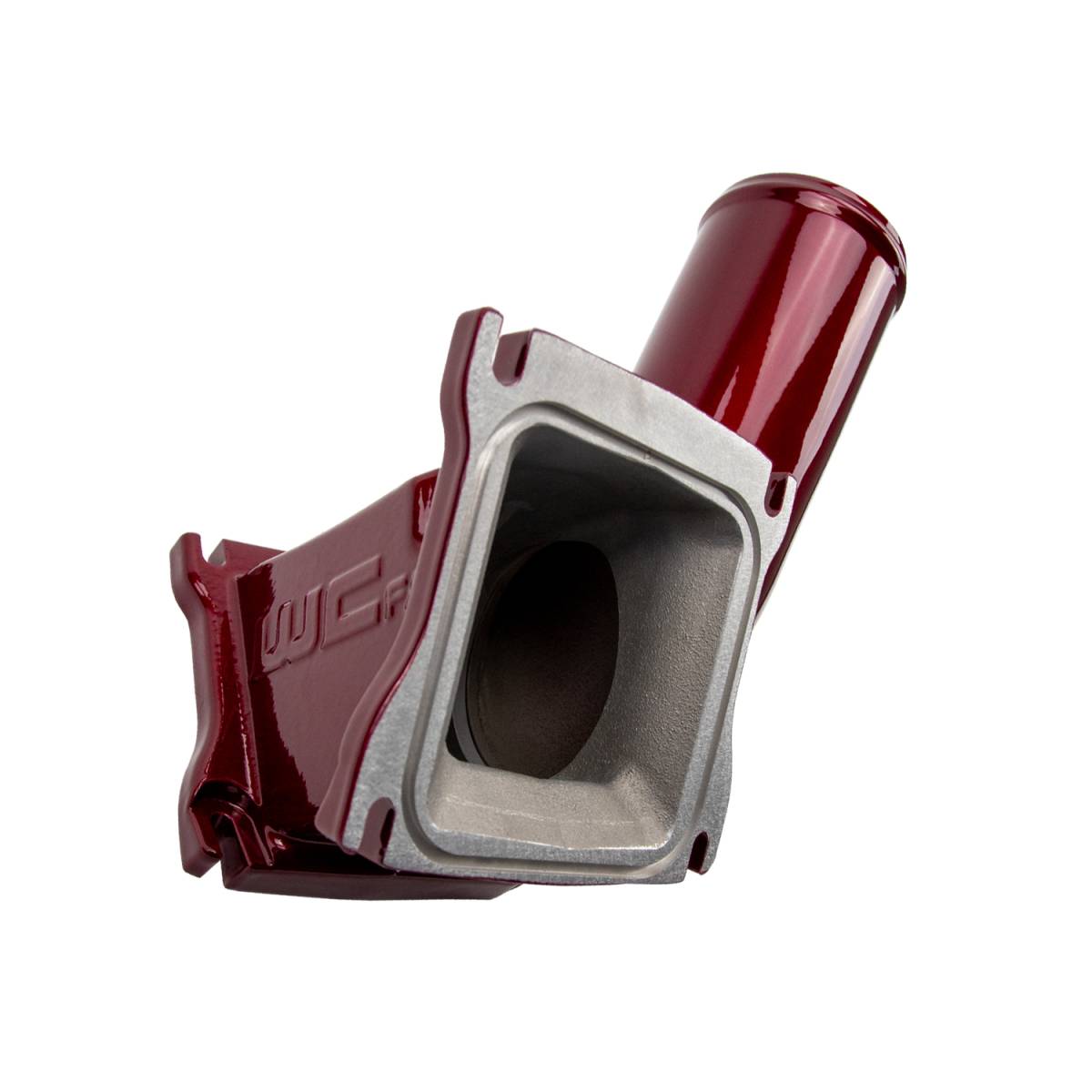

-WCFab's Signature 3" Two Piece Y-Bridge

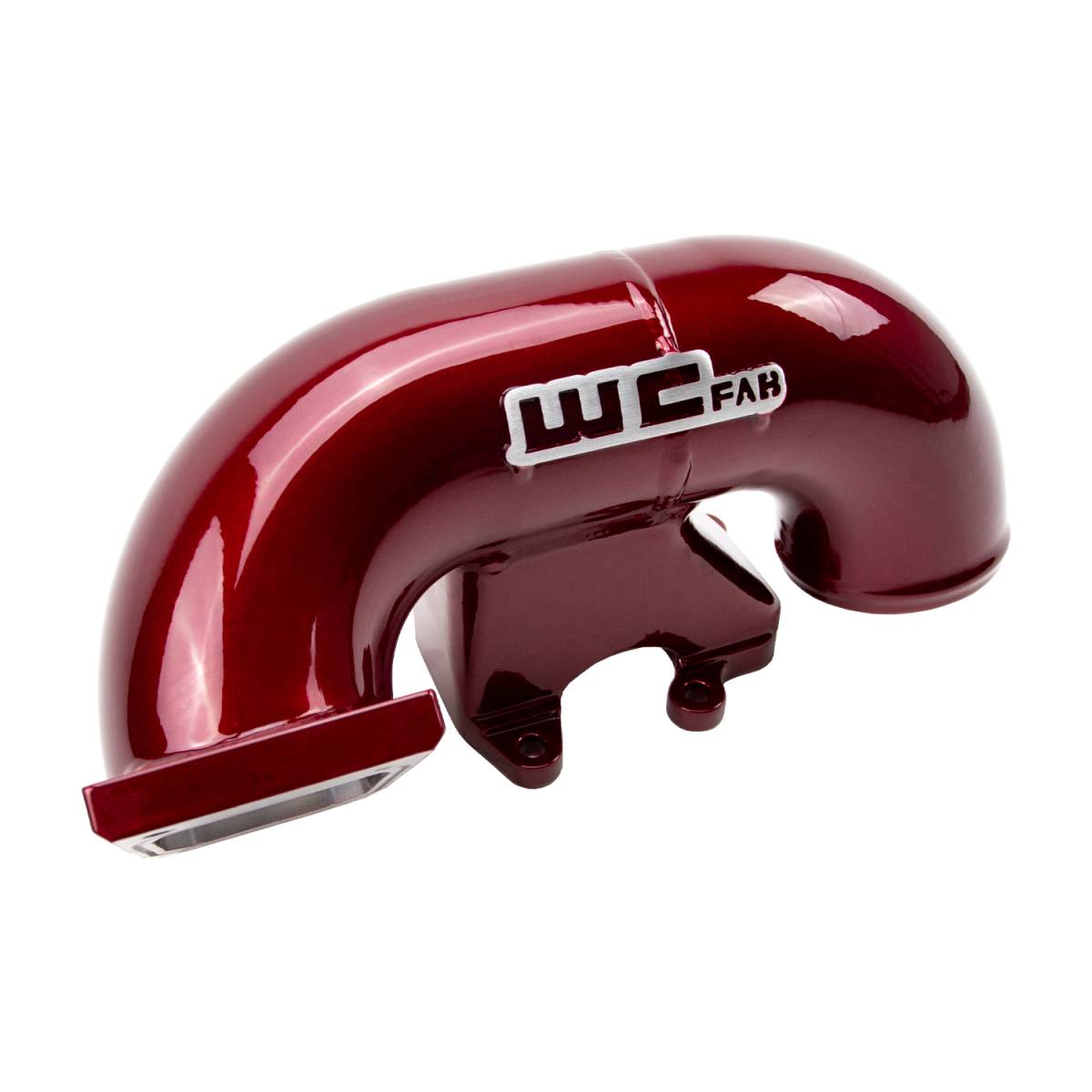

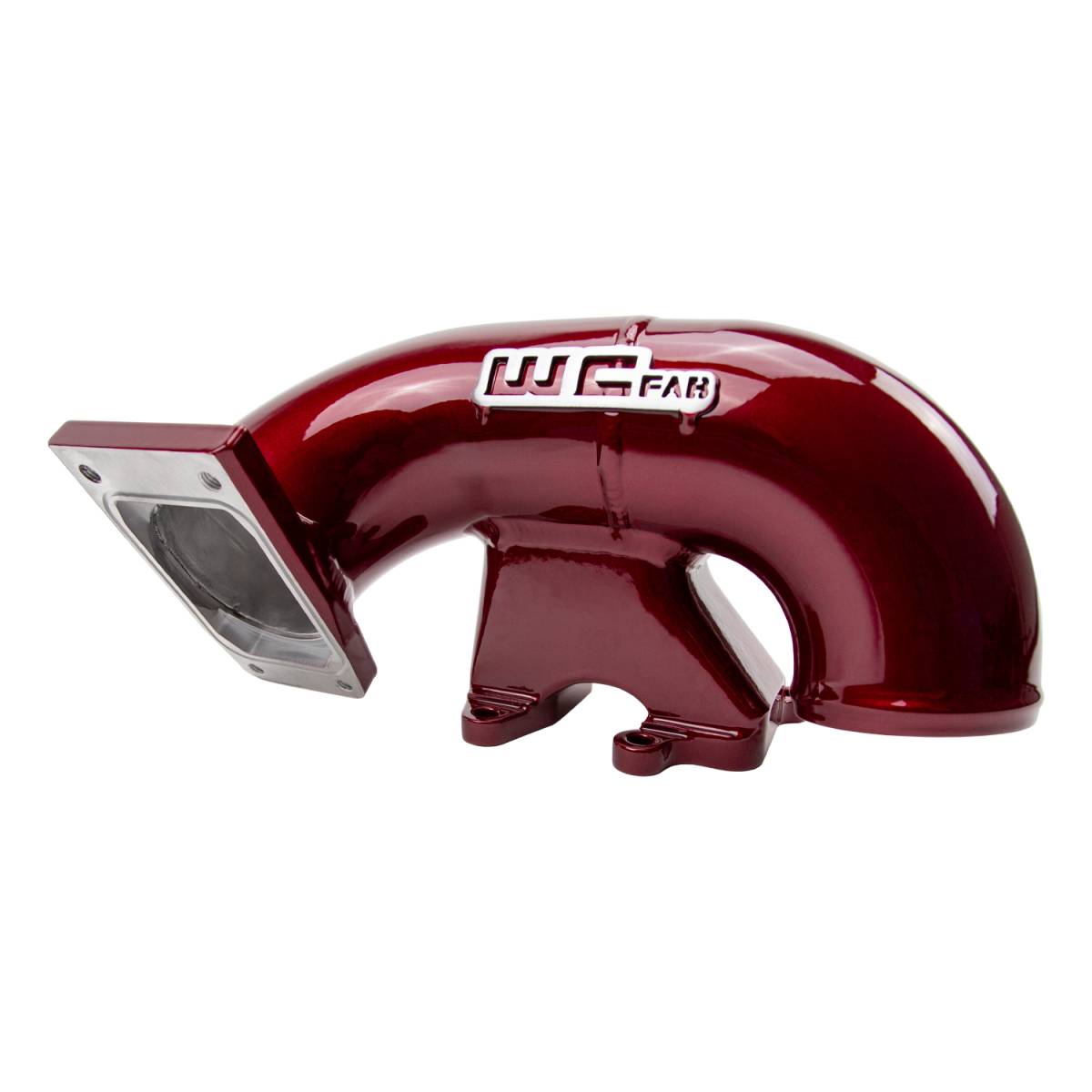

-3" Upper Intercooler Crossover Pipe
-3" Lower Intercooler Pipe
-High Quality Silicone Boot
-Stainless Steel T-Bolt Clamps
-Map Sensor Seal
-High Temp O-Ring Seals for Grid Heater and EGR
-Y-Bridge O-Ring Flange Seals
-New Up Pipe to EGR Gasket
-Includes New Grid Heater Install Hardware
-New Throttle Valve Support Bracket
-No Tuning Required, Bolt On!
-Compatible with stock trucks. No other modifications or upgrades necessary!
-Custom Powder Coat Finish
-Made in USA

Availability: WCFab Red, WCFab Grey and Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.

Select Options & Add to Cart

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

Pricing: $995.00

*Select Model Year Reset

*Select Powder Coating Reset

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

*Select Tag (Logo) Finish (PCUCTAG) Reset

Select your Tag (WCFab Emblem) finish from the options below. Applies to all logos on parts within this item.

*Select 3" Driver Side Intercooler Pipe Reset

Replace the factory hot side intercooler pipe with a high flow 3" unit and high quality boots.

*Select 3.5" Pass. Side Intercooler Pipe Reset

Replace the factory plastic cold side intercooler pipe with WCFab's high flow 3.5" kit.

Your Selected Options

Tag (Logo) Finish (PCUCTAG):: No thanks, I would like the standard Brushed tag finish. (Standard Finish); The WCFab emblem on our product comes standard in raw brushed finish (unless you choose Fluorescent Green or Fluorescent Orange). The other options in this list are custom order and carry additional cost and lead time.

Your Total Price

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

$995.00

Qty:

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Visit: www.p65warnings.ca.gov

Description

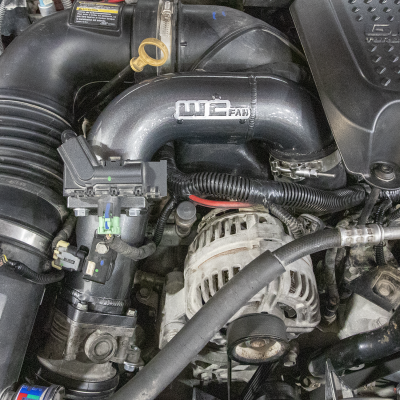

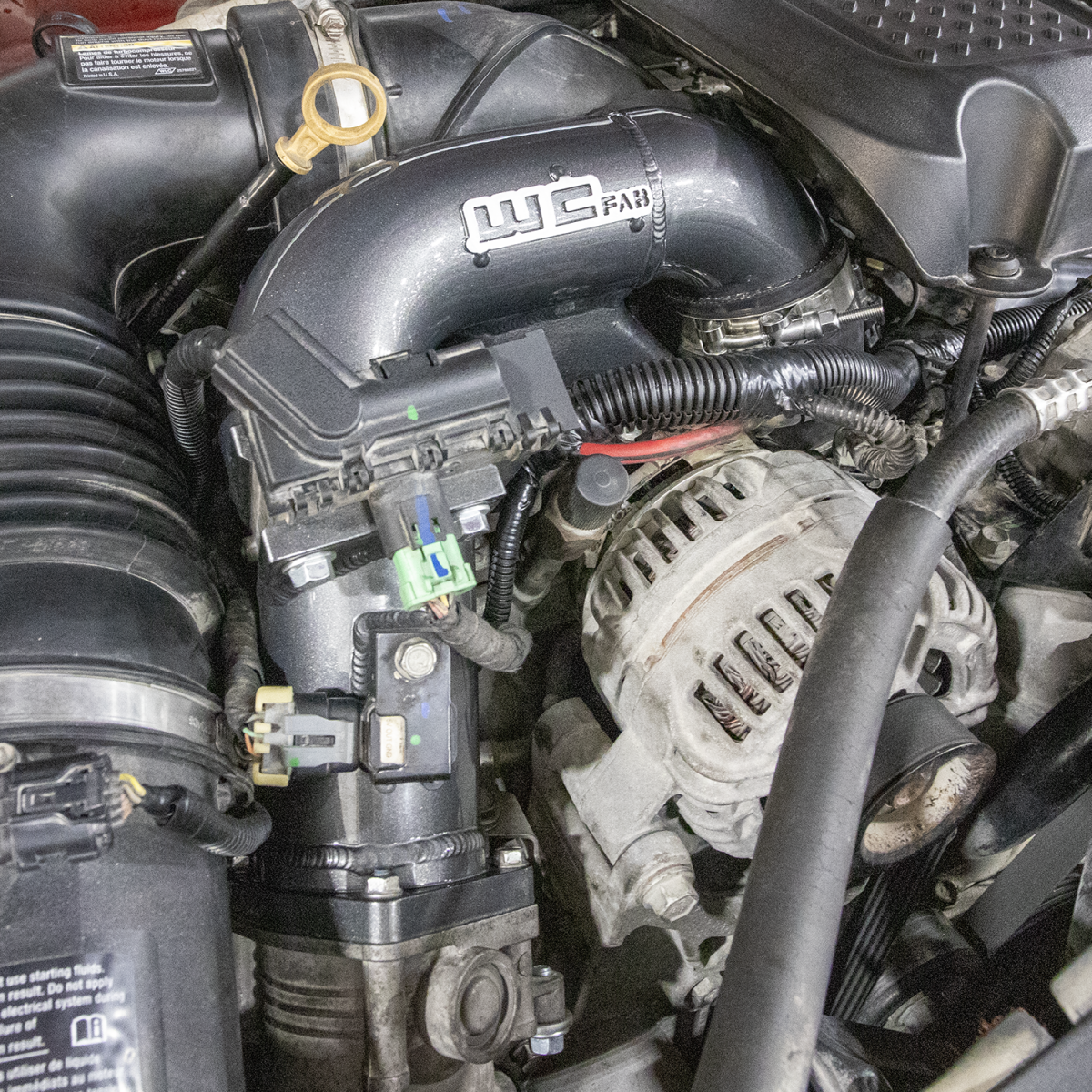

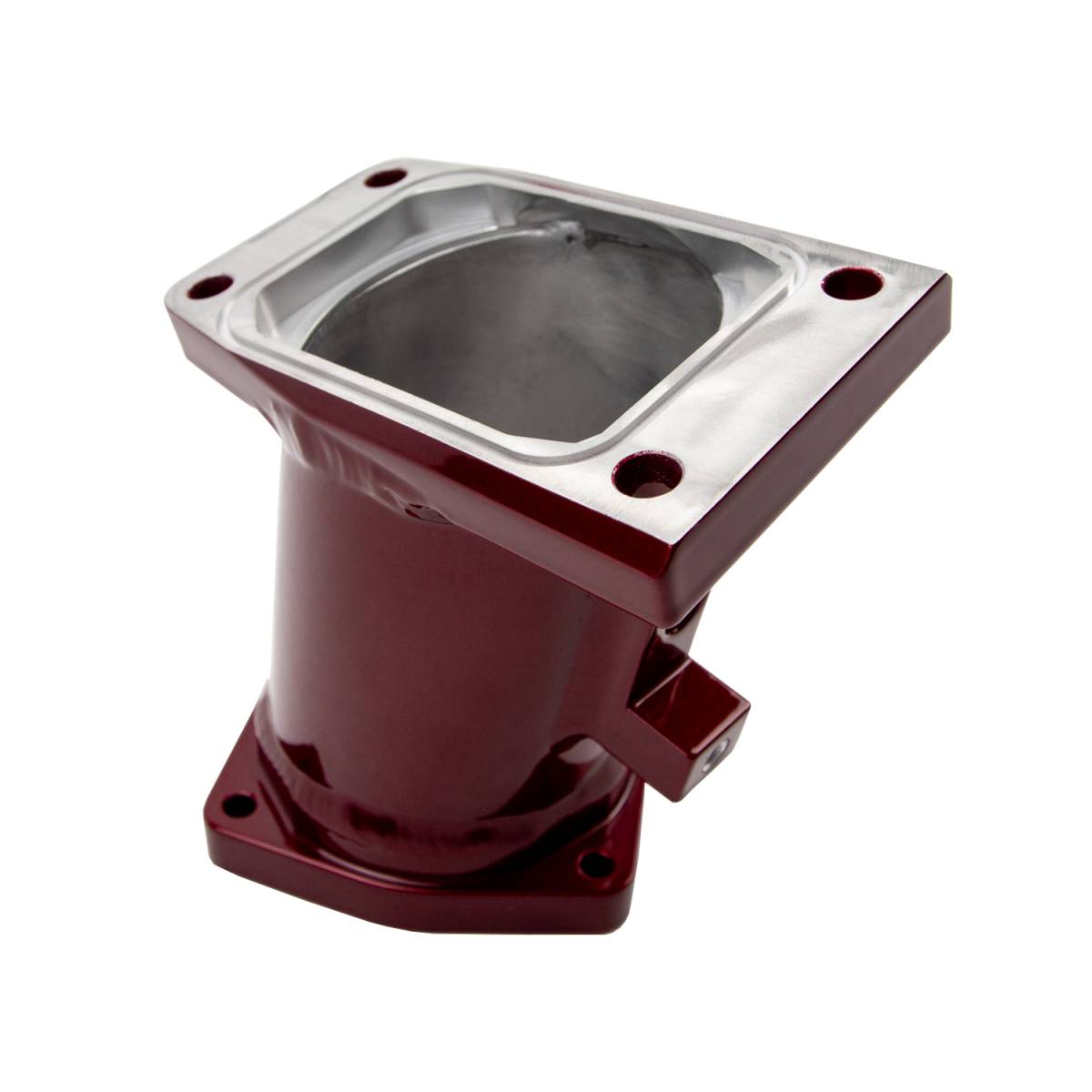

This LMM 3" Y-Bridge Kit is an upgraded high flow intake kit for the 2007.5-2010 LMM 6.6L Duramax which replaces the OEM upper intake manifold supplying air to the engine intake runners. The OEM Y-bridge for these trucks is a poorly designed, slip-fit style two piece bridge with very little support and is prone to blowing apart under boost on hard working and high performance trucks creating poor drivability and decreased power. This kit is a much improved, high flow, bolt together style two piece 3" bridge which provides a secure sealing surface where the air inlet horn connects to the bridge. 3" high flow upper and lower intercooler pipes feature smooth flowing mandrel bends, CNC machined billet flanges and perfectly compliment the y-bridge to offer a full 3" tract from intercooler pipe slip connection to the engine incorporating the factory grid heater, throttle valve, and EGR connection controls. Compatible with OEM lower passenger side intercooler pipe as well as our upgraded 3.5" High Flow Passenger Side Intercooler Pipe Kit WCF100367.

Finished in your choice of custom powder colors. This product is compatible with stock trucks requiring no additional modifications, upgrades, or tuning for installation.

Pairs best with emissions compliant tuning and drop in turbochargers for optimum performance gains.

Supersedes WCF100305

Replaces the following GM part numbers: 97363569, 97363568, 97364407, 98091149
