2003-2007 5.9L Cummins Stage 1 High Flow Intake Bundle Kit

Additional Images

Shipping: This Product cannot ship to the state of California

SKU: WCF100329

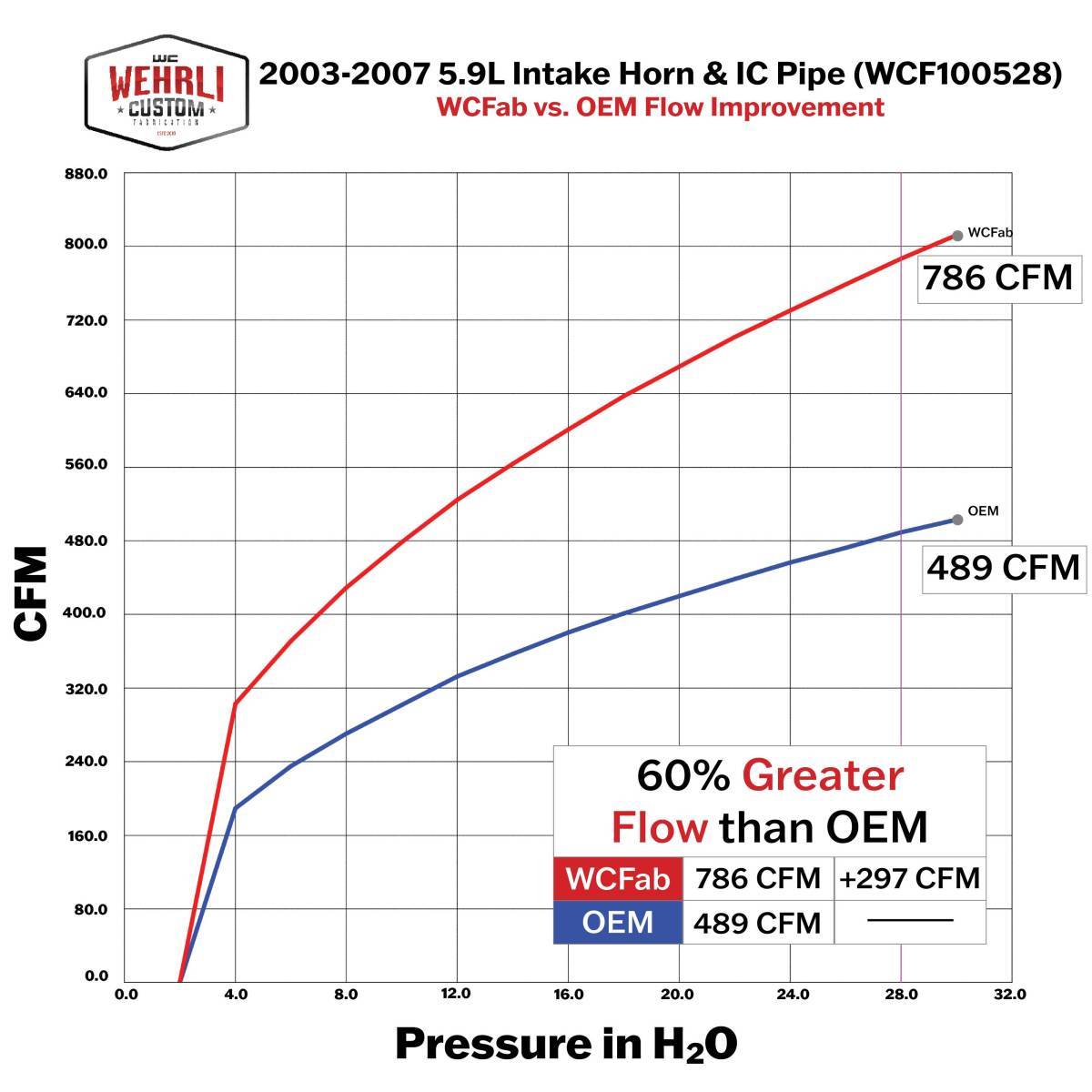

-Flows 60% better than stock parts!
-3" Hot / Passenger Side Intercooler Pipe
-3.5" High Flow Intake Horn & Matching 3.5" Cold / Driver Side Intercooler Pipe
-High Quality Aluminum Construction
-Intake Gasket
-Installation Hardware
-Powder Coating
-Silicone Boots
-Stainless T-Bolt Clamps

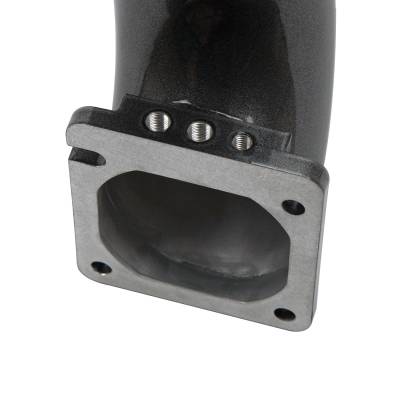

-2x 1/8" NPT Ports for Boost Pressure reading or Water Methanol Injection
-Mounting points to retain factory oil dipstick location and wire harness routing
-NO Tuning required, bolt on!
-Will fit on stock truck no other modifications or upgrades necessary!

Availability: WCFab Red, Bengal Red, and Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.

Select Options & Add to Cart

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

Pricing: $759.00

As low as $69/mo with Affirm. Check your purchasing power

*Select Model Year Reset

*Select Powder Coating Reset

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

*Select Tag (Logo) Finish (PCUCTAG) Reset

Select your Tag (WCFab Emblem) finish from the options below. Applies to all logos on parts within this item.

*Select Grid Heater Reset

This high flowing CNC machined billet aluminum plate allows maximum air flow from the intake horn into the cylinder head - increasing turbo spool up and performance.

*Select D&J Precision Billet Valve Cover Reset

Select your Color. Cover will be coated the same as Kit unless specified otherwise at checkout.

Your Selected Options

Tag (Logo) Finish (PCUCTAG):: No thanks, I would like the standard Brushed tag finish. (Standard Finish); The WCFab emblem on our product comes standard in raw brushed finish (unless you choose Fluorescent Green or Fluorescent Orange). The other options in this list are custom order and carry additional cost and lead time.

Your Total Price

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

$759.00

Qty:

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Visit: www.p65warnings.ca.gov

Description

High Flow Intake Bundle Package for 2003-2007 5.9L Cummins. Saves $29.00 vs buying components individually!

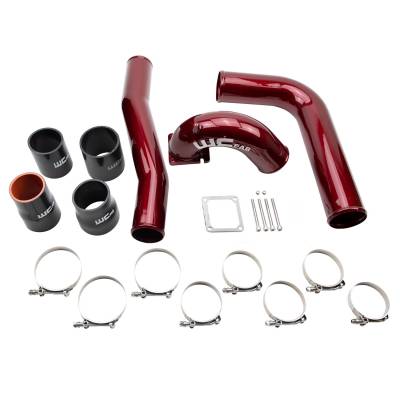

This Kit Includes: WCF100544 - 3" Passenger Side Intercooler Pipe WCF100528 - 3.5" Driver Side Intercooler Pipe and Intake Horn Kit

Replaces the following MOPAR part numbers: 55056538AC, 55056538AB, 55056560AB, 55056563AB, 55056565AA, 52028895AE, 52028895AC, 52028895AD, 5086828AA

***2003-2004 models only - This kit's 3.5" intake horn is significantly larger than the stock piece it is replacing. The smooth radius bends on the new part requires the plastic shroud over the throttle assembly on earlier trucks to be trimmed for fitment.***
