2003-2007 5.9L Cummins 3.5" High Flow Intake Horn & Intercooler Pipe Kit

Wehrli Custom Fabrication
Additional Images
Shipping: This Product cannot ship to the state of California
Product Rating:
  • Currently 5/5 Stars
WCF100528

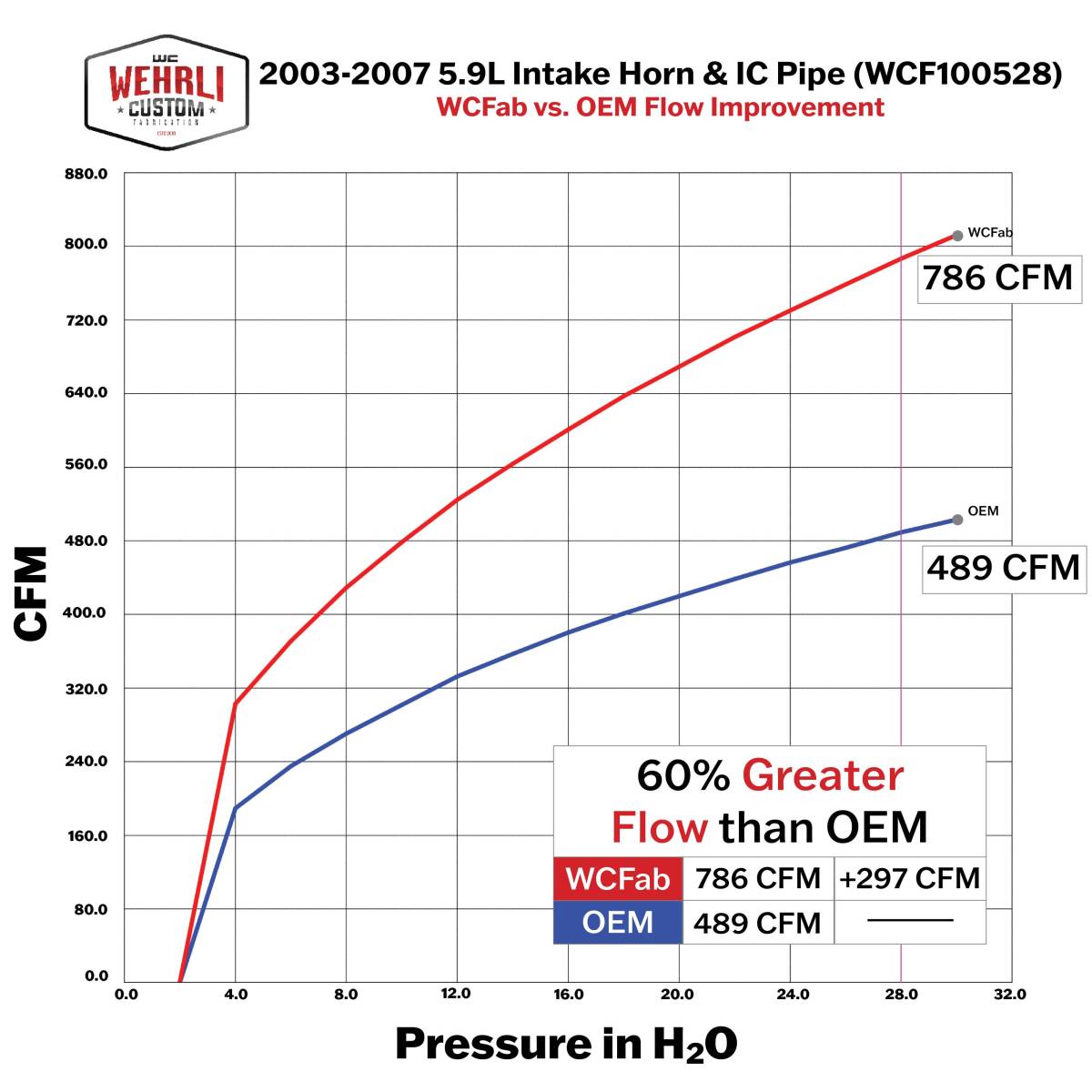

- 60% greater flow than stock

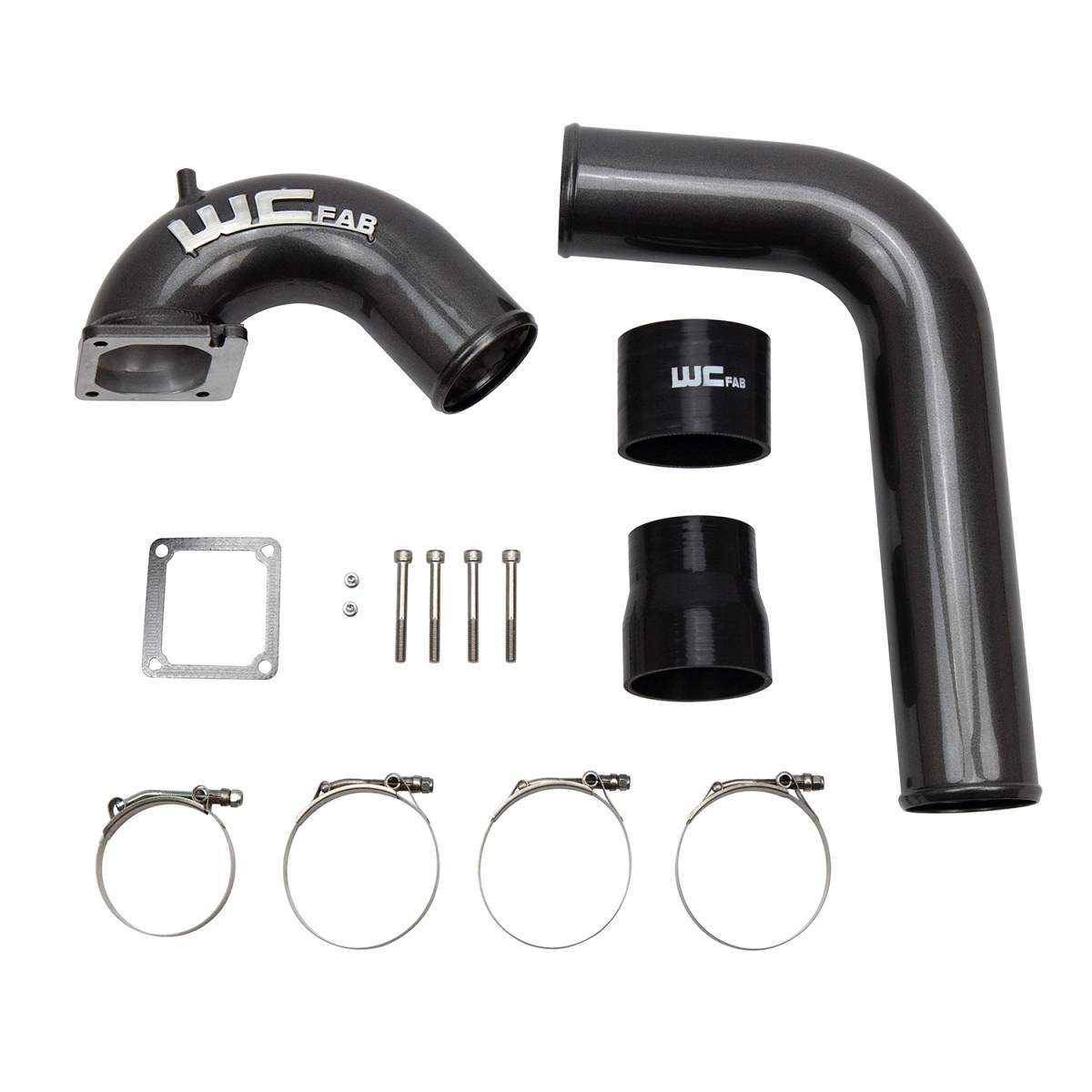

- 3.5" High Flow Intake Horn & matching 3.5" Intercooler Pipe
- High Quality Aluminum Construction
- Intake Gasket
- Hardware
- Powder Coating
- Silicone Boots
- Stainless T-Bolt Clamps

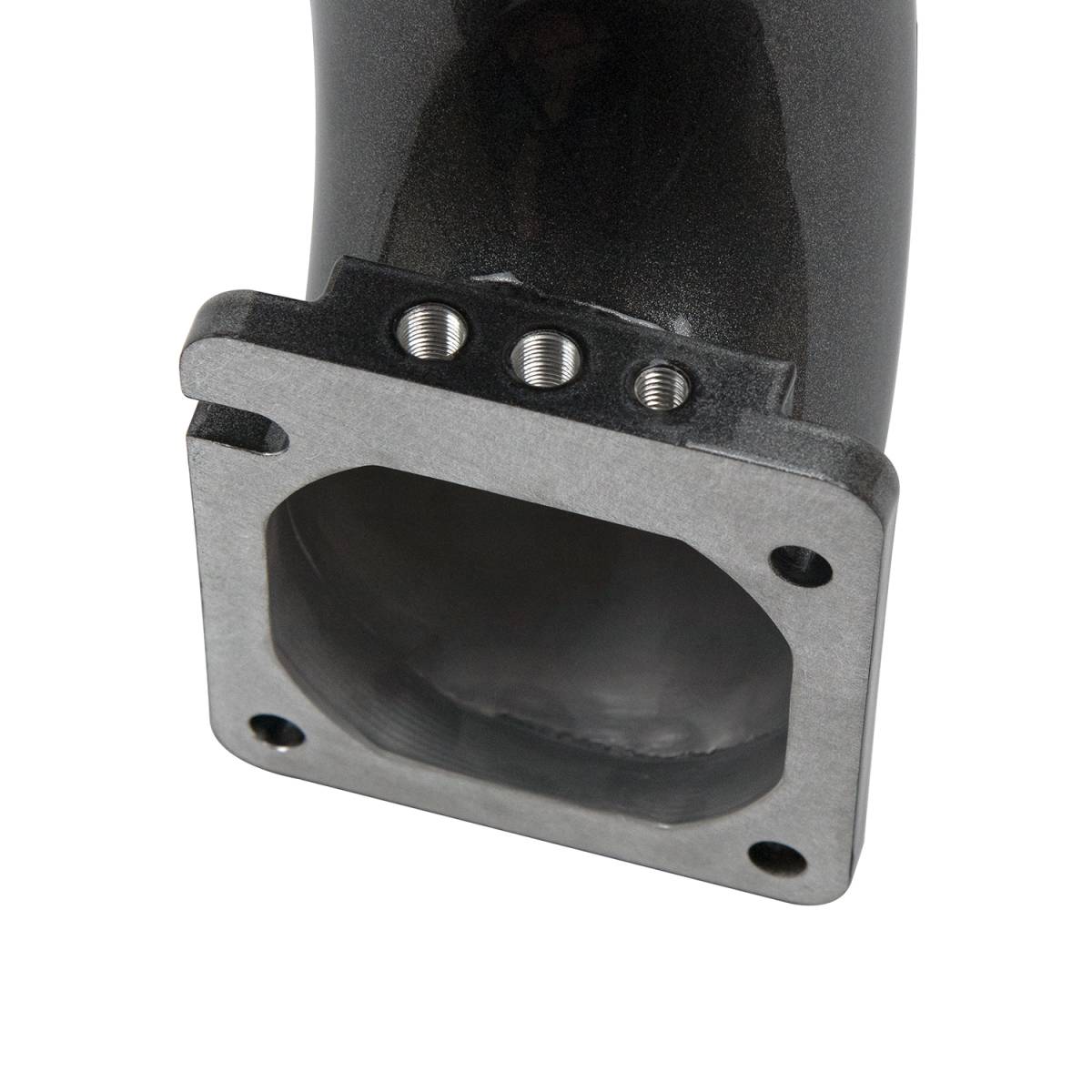

- 2x 1/8" NPT Ports for Boost Pressure reading or Water Methanol Injection

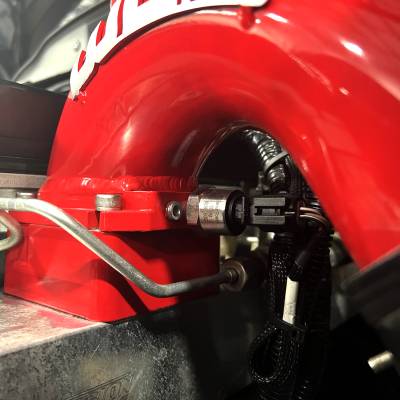

- Mounting points to retain factory oil dipstick location and wire harness routing
- NO Tuning required, bolt on!
Availability: WCFab Red with Standard Brushed Tag, Bengal Red with Standard Brushed Tag, and Gloss Black with Standard Brushed Tag in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.
5 5 1
Select Options & Add to Cart
Pricing: $572.00

As low as $52/mo with . Check your purchasing power

*Select Model Year Reset

*Select Powder Coating Reset

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

*Select Tag (Logo) Finish (PCUCTAG) Reset

Select your Tag (WCFab Emblem) finish from the options below. Applies to all logos on parts within this item.

*Select Grid Heater Reset

This high flowing CNC machined billet aluminum plate allows maximum air flow from the intake horn into the cylinder head - increasing turbo spool up and performance.

Your Selected Options

Tag (Logo) Finish (PCUCTAG):
No thanks, I would like the standard Brushed tag finish. (Standard Finish)
The WCFab emblem on our product comes standard in raw brushed finish (unless you choose Fluorescent Green or Fluorescent Orange). The other options in this list are custom order and carry additional cost and lead time.

Your Total Price

$572.00
Qty:

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Visit: www.p65warnings.ca.gov

Description

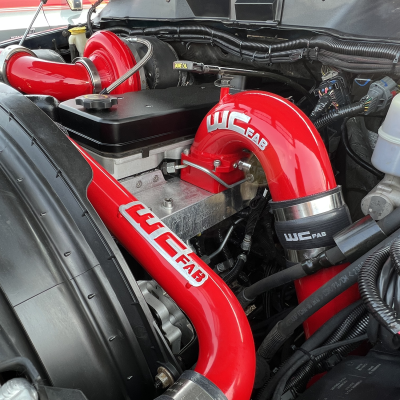

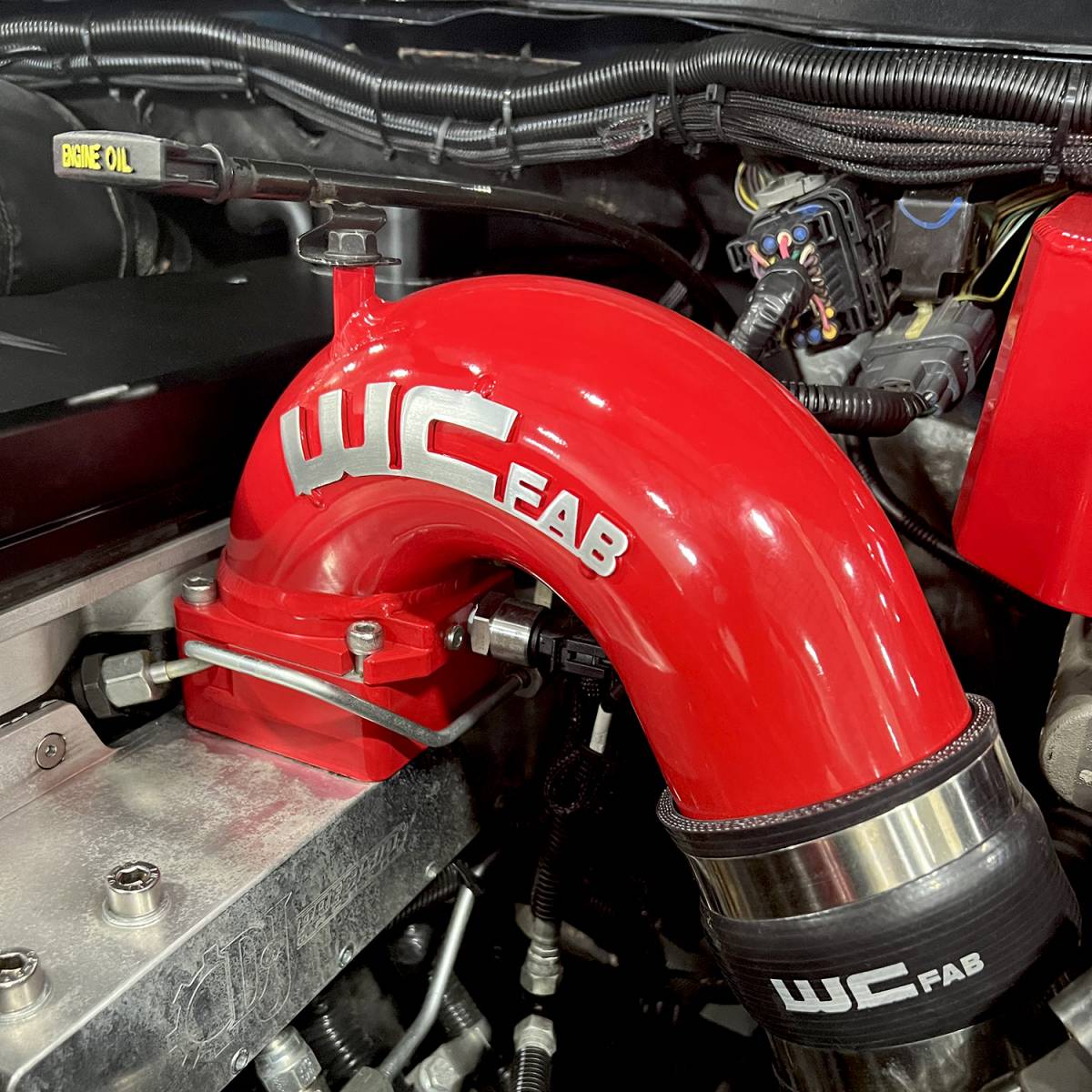

2003-2007 5.9L Cummins High Flow 3.5” Intake Horn and Driver Side Intercooler Pipe Kit. Kit replaces the failure prone 3” plastic OEM intercooler pipe with a 3.5” heavy duty 14g Aluminum intercooler pipe and the OEM cast intake horn (which is necked down to less than 1.5” wide) with a full mandrel bent 3.5” elbow. The 3.5” elbow is welded to a CNC machined aluminum mounting flange (new hardware included) which perfectly matches the WCFAB Intake Spacer Kit for optimum airflow into the cylinder head. Our horn can be used with the OEM grid heater or other brand high-flow intake plates; however, the internal surfaces may not be as perfect of a match as our Billet Intake Spacer kit offers. The CNC machined flange has two incorporated 1/8” pipe thread ports for boost reference or other injectables, and an 8mm threaded port to accept the wire harness isolation clamp to support the OEM wire harness. The 3.5” High Flow Horn also has an incorporated threaded bung to fasten the oil dipstick tube securely. Connecting the Intercooler pipe to the intercooler, and Pipe to Horn, are supplied high quality 5 ply silicone boots and stainless steel t-bolt clamps. No need to reuse any worn-out or torn OEM boots or clamps. The Intake horn and Intercooler Pipe are rounded off with WCFab's high-quality powder coat finish in your color of choice.

Replaces the following MOPAR part numbers: 52028895AE, 52028895AC, 52028895AD, 5086828AA

***2003-2004 models only - This 3.5" intake horn is significantly larger than the stock piece it is replacing. The smooth radius bends on the new part requires the plastic shroud over the throttle assembly on earlier trucks to be trimmed for fitment.***
