2003-2007 5.9L Cummins S400/Stock Twin Turbo Kit

Wehrli Custom Fabrication
Additional Images
Shipping: This Product cannot ship to the state of California
(0) Reviews: Write first review
WCF100567

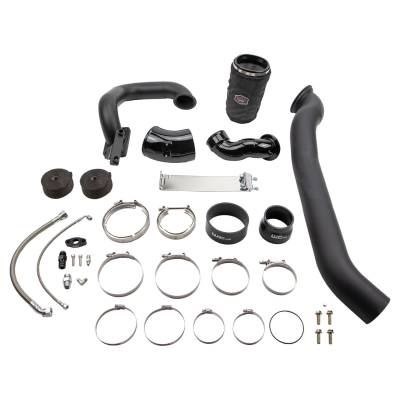

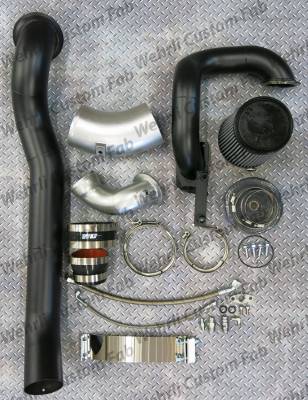

- 5" Intake
- Dry Air filter
- Outerwear's Pre-Filter Cover
- Stainless Steel Oil Feed and Drain Lines with Fittings
- 4" Turbo Down Pipe
- 3" Turbo Hot Side Cross Over Pipe
- 3" Cold Charge Pipe Between Turbos
- O-ring seals
- Silicone Boots
- T-Bolt Clamps
- V-Band Clamps
- Install Hardware
- Heat Wrap & Clamps
- High Temp Black Ceramic Coating on Hot Side and Down Pipe
- Powder Coating
Availability: Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.
Select Options & Add to Cart
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California
Pricing: $2395.00

As low as $217/mo with . Check your purchasing power

*Select Model Year Reset

*Select Powder Coating Reset

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

*Select High Flow Intake Horn & IC Pipe Reset

Replaces the failure prone 3” plastic OEM intercooler pipe with a 3.5” heavy duty 14g Aluminum intercooler pipe

*Select Grid Heater Reset

This high flowing CNC machined billet aluminum plate allows maximum air flow from the intake horn into the cylinder head - increasing turbo spool up and performance.

*Select 3" Hot Side Intercooler Pipe Reset

Replace the factory passenger side intercooler pipe with a high flow 3" unit and high quality boots.

*Select S400 Turbo Charger Size Reset

*Select Powder Coat S400 Turbo Cover Reset

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

*Select Fleece Coolant Bypass Kit Reset

Fleece Coolant Bypass Kit

*Select Stainless Exhaust Manifold Stud Reset

Stainless Exhaust Manifold Stud Kit

*Select T6 Turbo Heat Blanket Reset

*Select T6 Exhaust Housing Finish Reset

*Select D&J Precision Billet Valve Cover Reset

Select your Color. Cover will be coated the same as Kit unless specified otherwise at checkout.

Your Selected Options

Please select all required options.

Your Total Price

NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California
$2395.00
Qty:
NOTE: This product has the following shipping restriction(s):
  • This product cannot be shipped to California

California Residents: Prop 65 Warning

WARNING: Cancer and Reproductive Harm

Visit: www.p65warnings.ca.gov

Description

2003-2007 5.9L Cummins S400/Stock Compound Turbo Kit. 1000 RWHP capable, depending upon turbo and fuel system modifications. Recommended for daily driver work trucks and tow rigs looking for increased horsepower, better fuel mileage, and superior EGT control with stock-like turbo spool characteristics.




Recommended Combinations:

S475 / Stock Holset Turbo - Up to 750 RWHP with Supporting Modifications - Best Turbo Spool, performs well on stock fuel setups.

S480 / Stock Holset Turbo - 800+ RWHP Capable with Supporting Modifications - A better top-end performance that sacrifices a bit of spool on the lower end when compared to an S475/stock setup.

S480 / 63 or 64 Upgraded Drop-In Turbo - 900+ RWHP Capable with Supporting Modifications - Improved top end power with moderate spool characteristics

S480 / 67 Upgraded Drop-In Turbo - 1000+ RWHP Capable with Supporting Modifications - Best Top End Power, sacrifices low-end power and turbo spool - Manual trans trucks will allow best use of power band for this setup. Not recommended for tow rigs.

Don't see what you're looking for here? Check out our S400/S300 or S400/S400 kits for ultra high-performance applications, or give our specialists a call at 630-277-8239 for assistance custom building a setup that will work best for your needs.

***This kit is designed to be used with the OEM exhaust manifold. If you would like to use an aftermarket OEM replacement style manifold like a Steed Speed 3rd Gen T3, you MUST send it in for the kit to be custom-built, and your lead time does not start until the manifold is in our possession.***

***Retains passenger-side factory battery location***
