2001-2004 LB7 Duramax S300 Single Turbo Install Kit

SKU: WCF100478

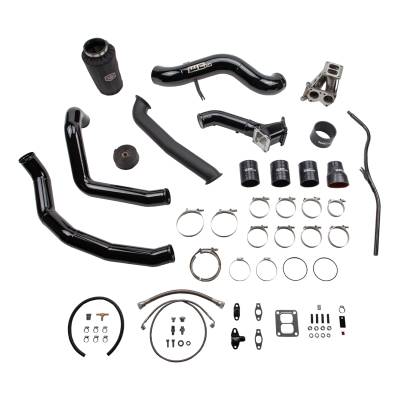

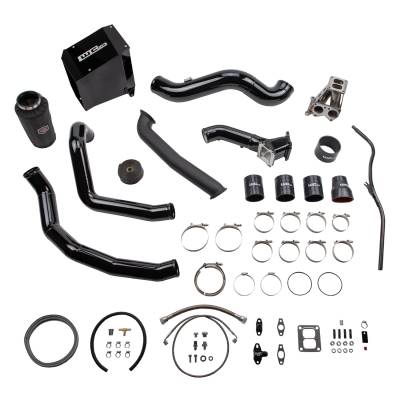

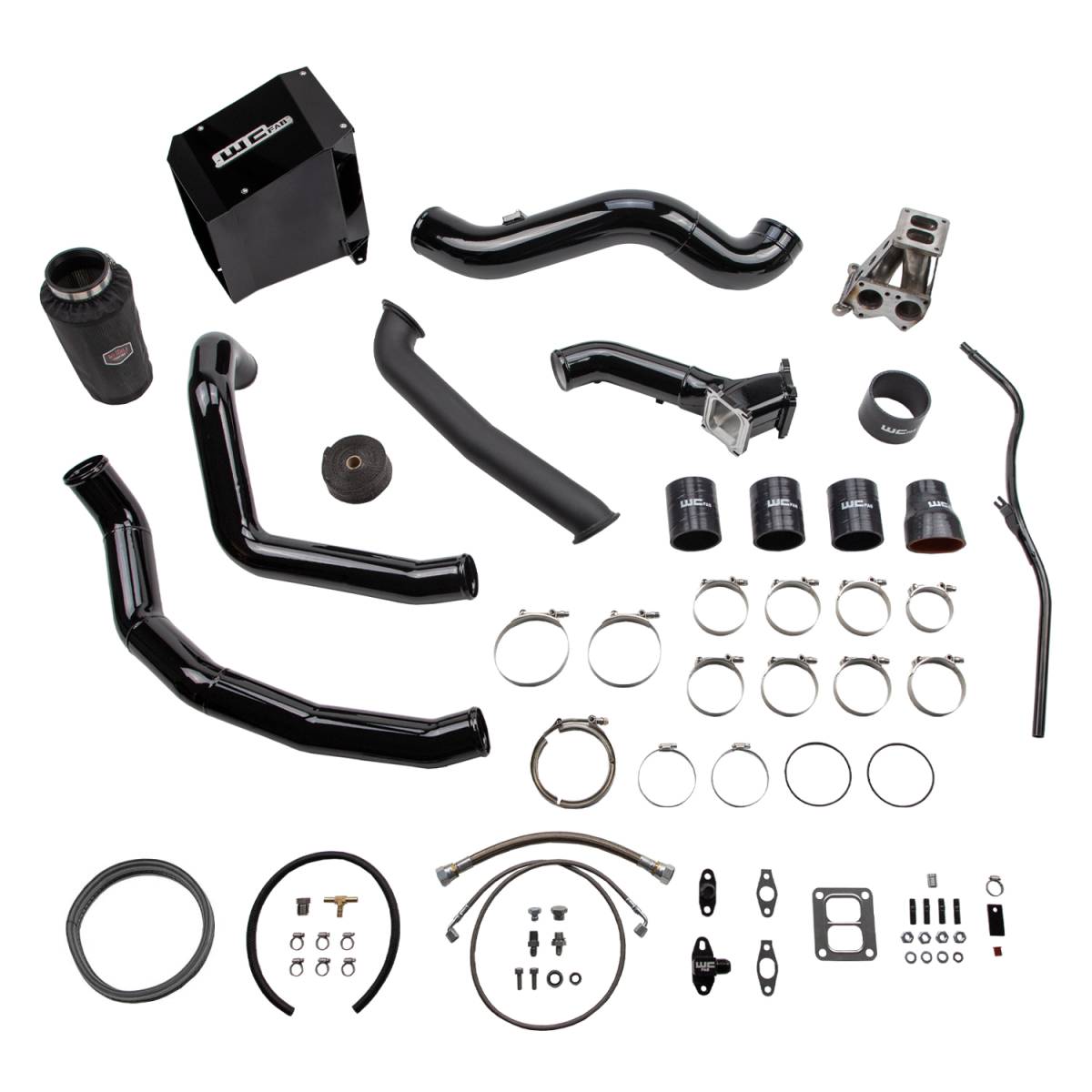

-4" Intake
-Dry Air Filter
-Outerwear's Pre-Filter Cover
-T4 Pedestal with Hardware
-Stainless Steel Oil Feed and Drain Lines with Fittings
-3" Fabricated High Flow Y-Bridge
-3" Hot Side Intercooler Pipe
-3" Cold Side Intercooler Pipe
-3" Down Pipe with High Temp Coating (Mates to exhaust system flange)
-Driver Side Trans Dipstick tube
-Silicone Boots
-T-Bolt Clamps
-V-Band Clamps
-Heat wrap
-Powder Coating

Availability: Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.

Shipping: This Product cannot ship to the state of California

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

Pricing: $2,599.00

Customize Your Item

Model Year

- Model Year -

* required

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

Powder Coating

- Powder Coating -

* required

Select your Tag (WCFab Emblem) finish from the options below. Applies to all logos on parts within this item.

Tag (Logo) Finish (PCUCTAG)

- Tag (Logo) Finish (PCUCTAG) -

* required

S300 Turbo Charger

- S300 Turbo Charger -

* required

S300 Exhaust Housing

- S300 Exhaust Housing -

* required

Select your Color. Color samples can be seen on the "Powder Coat Colors" page of the main menu.

Powder Coat S300 Turbo Cover

- Powder Coat S300 Turbo Cover -

* required

Spare 4" Air Filter

- Spare 4" Air Filter -

* required

Up Pipes & Manifolds

- Up Pipes & Manifolds -

* required

T4 Turbo Heat Blanket

- T4 Turbo Heat Blanket -

* required

Fastener Type

- Fastener Type -

* required

T4 Exhaust Housing Finish

- T4 Exhaust Housing Finish -

* required

LB7 Coolant Pipe

- LB7 Coolant Pipe -

* required

What Intercooler You Have

- What Intercooler You Have -

* required

Qty:

NOTE: This product has the following shipping restriction(s):

This product cannot be shipped to California

Description
Product Notes
Video
Details
Shipping
Reviews

Description

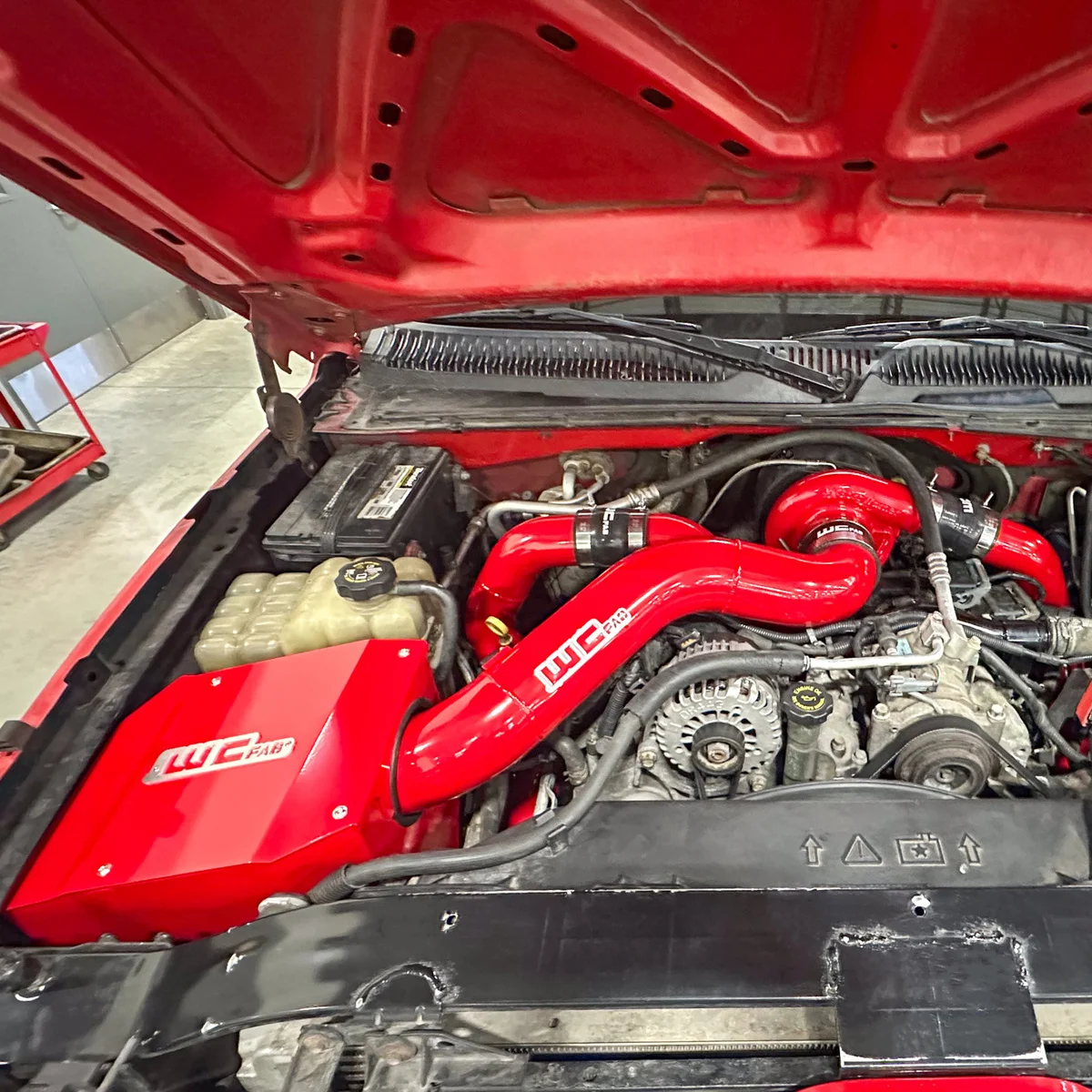

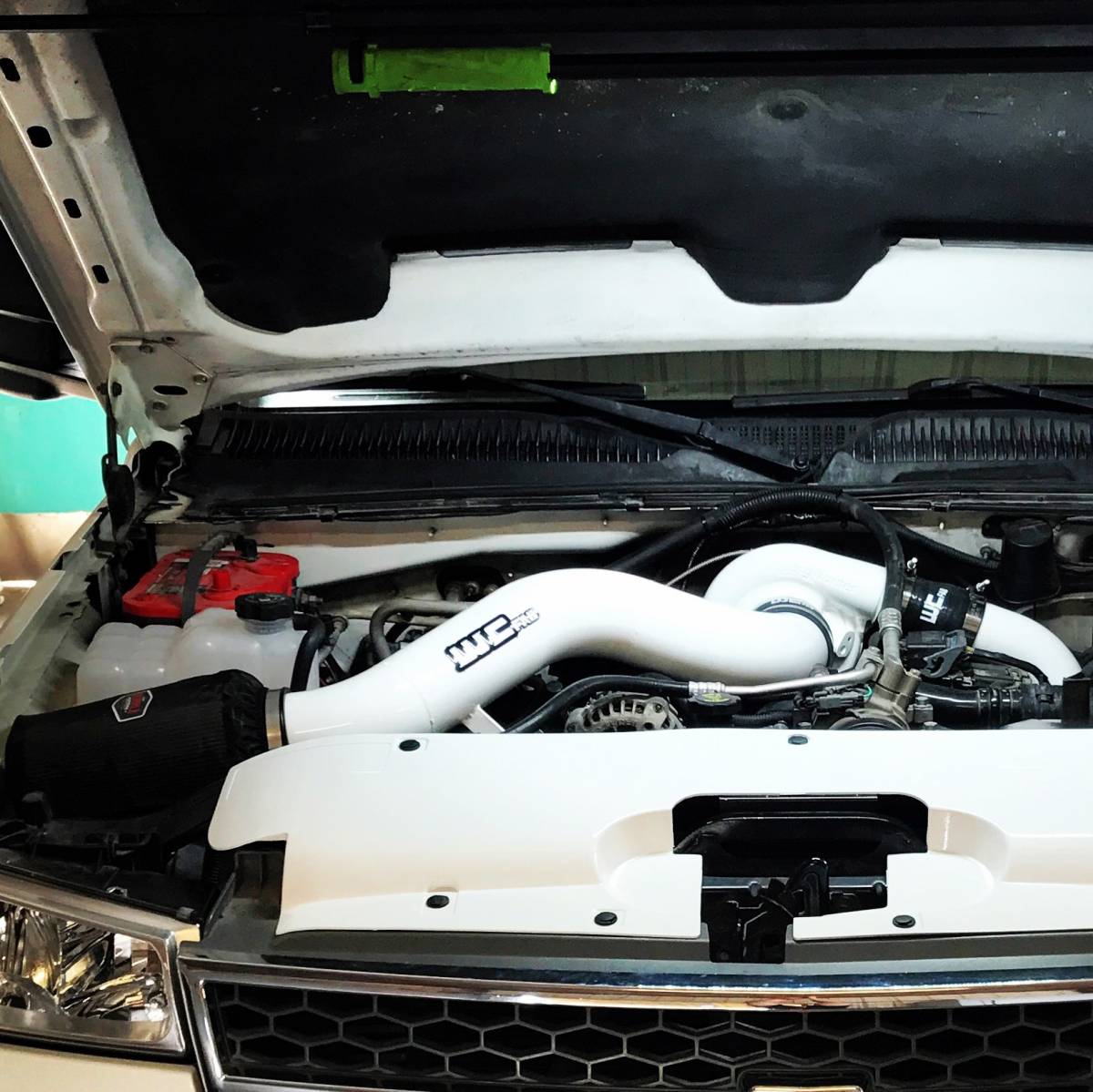

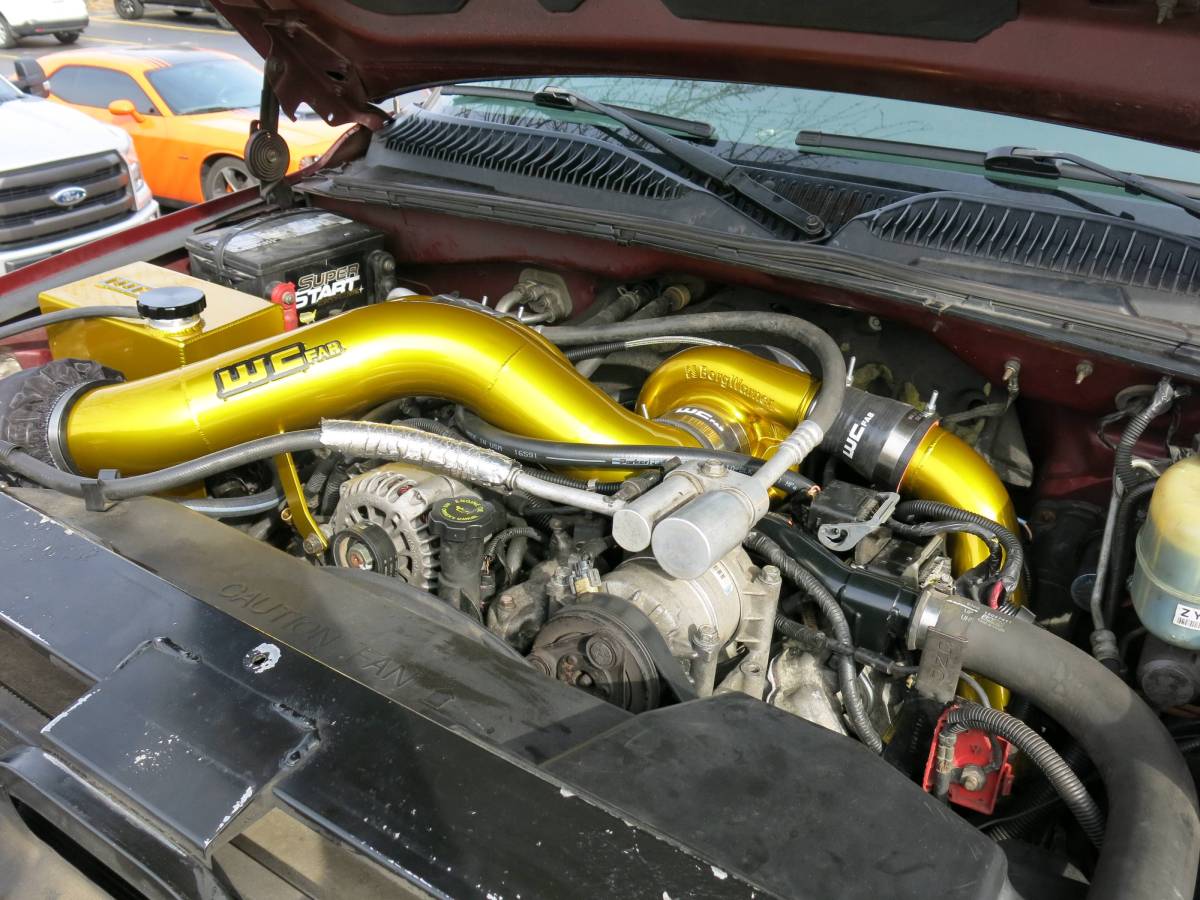

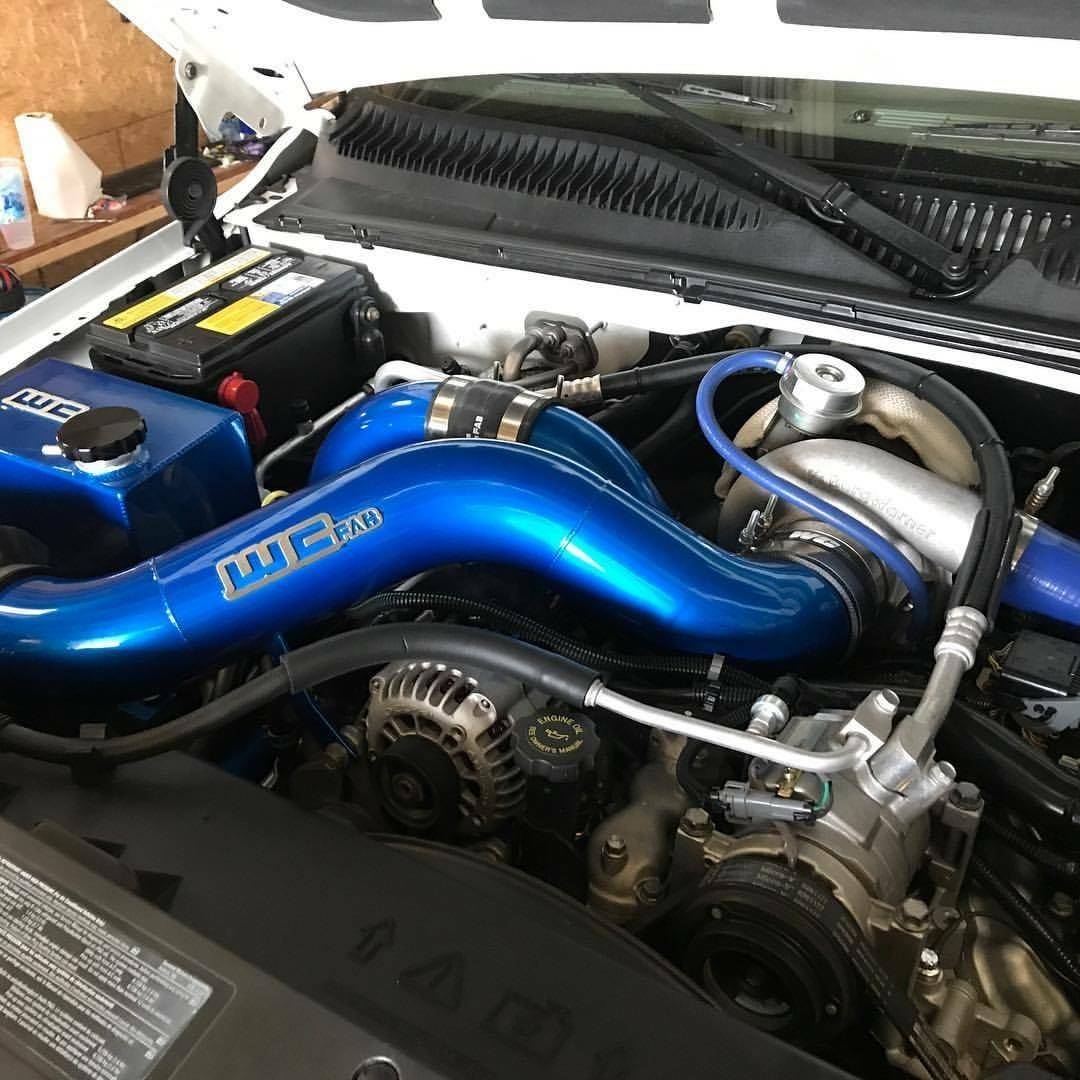

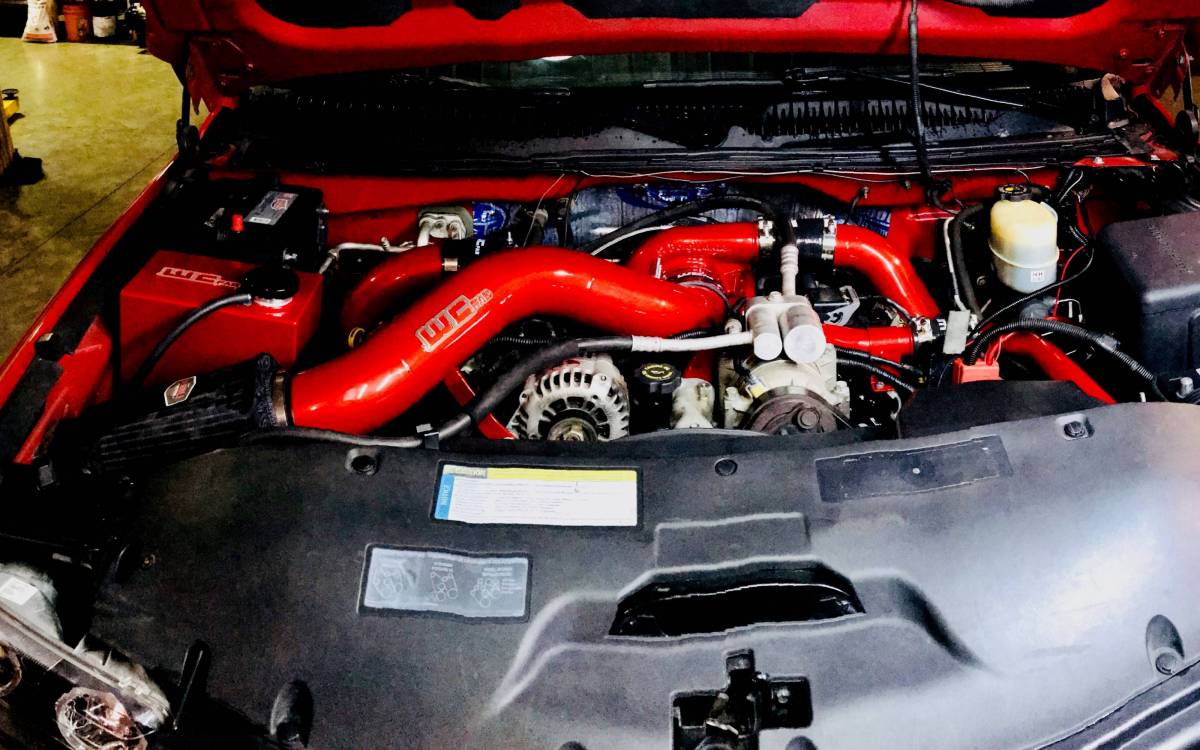

This kit will allow you to install an S300-based Turbo on your LB7 Duramax. Replacing all OEM plumbing and y-bridge with high flow 3" diameter piping. Oil Lines are high-quality stainless steel braided Parker Lines with the oil feed line routing from the main oil galley on the side of the engine block. We designed our down pipe to connect with your exhaust system V-Band and clamp, which simplifies installation and does not require you to cut your exhaust system.

If you are not purchasing the turbo from us, you must specify the brand you are using and may be required to ship your turbo to us for mock-up to build the kit. Your lead time starts when we have the turbo in our possession to be able to build your kit.

Includes Driver Side Transmission Dipstick Tube, making installing the down pipe easier.

***NOTE: Our downpipe is an HX40 style flange connection at the turbo, as this style offers the best seal, alignment, and easiest install. If you are not purchasing the turbo from us you will need to make sure your exhaust housing is machined to HX40 style outlet flange! Note the picture above for the HX40 flange vs the full marmon standard style.***

***Forward Facing Thermostat Required: The OEM turbo coolant feed port on the upper radiator pipe from the thermostat housing will interfere with the larger WCFAB Turbo Intake in this Kit. Billet Coolant Port Block Off Plugs DO NOT allow enough room for clearance on LB7 Models. You MUST use a WCFAB Billet forward-facing thermostat housing Kit WCF100405 together with this kit to complete the installation. ***

Product Notes

-We recommend kits to be installed by a qualified diesel performance shop or mechanic.
-Certain upgrades are necessary for optimum performance and drivability. (I.E- Tuning and Lift Pump)
-Must specify brand of Intercooler upon ordering. The Cold side intercooler pipe is built differently depending on brand used.
***NOTE: Our down pipe is HX40 style flange connection. If you are not purchasing the turbo from us you will need to make sure your exhaust housing is machined to HX40 style outlet flange!
